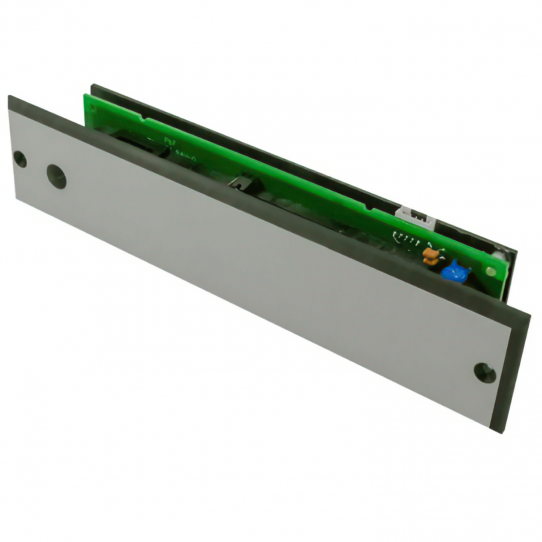

BEA, 10FOCUS2 Active Infrared Presence Sensor, Recess Mount

Product Overview

BEA 10FOCUS2 Active Infrared Presence Sensor, Recess Mounts FOCUS FAMILY are focused, active-infrared-based presence sensors designed to effectively detect people and objects.

These compact sensors can be used in a variety of applications where space may be limited or additional detection is required to complement pre-installed sensors, such as on revolving doors where pinch-zone protection is needed.

Product Features

• Low Profile, Recessed-mount
• Ideal for drive-thru / pass-thru applications

Models

• 10FOCUS2 - Active Infrared Presence Sensor, Recessed Mount

Specifications

• Model: 10FOCUS2 Active Infrared Presence Sensor
• Manufacturer: BEA
• Technology: Focused active infrared
• Detection Mode: Presence
• Voltage: 24 VAC/VDC +/-10%
• Current Draw: 60 mA (on); 30 mA (off)
• Relay: SPDT, 1 A at 30 V
• Detection Range: 0 to 8-1/5 feet
• Cable: 5-conductor connection to controller
• Operating Temperature: -30° F to 140° F
• Mount: Recessed mount (low profile)
• Power Input: 24 VAC/VDC ±10%
