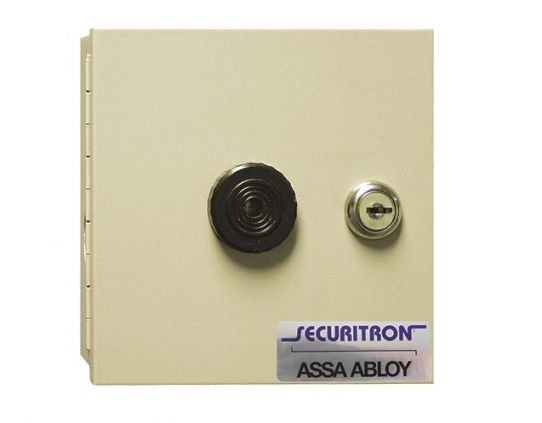

BA-XDT Exit Delay Timer, with Boxed Alarm & Door Label

Product Overview

Configurable exit delay is ideal for fail safe environments that have varying needs throughout the day. Function is compatible with entry control, door/lock monitoring,and authorized immediate exit. Widely used in healthcare environments to alert for patient exit and in retail environments to prevent theft.

Standard Features

• Meets all code requirements including the BOCA 30 second relock function
• Nuisance delay and release times are digitally set using precise DIP switches
• Release delay of 15 or 30 seconds. Three 5A SPDT relays for interface capabilities
• External switches such as time clock scan put the XDT into different modes when delayed exit is not desired at all times
• MagnaCare® lifetime replacement, no fault warranty

Specifications

• Models: BA-XDT-12, BA-XDT-24
• Current Draw: 100 mA at 12 VDC (BA-XDT-12); 50 mA at 24 VDC (BA-XDT-24)
• Release Delay: 15 or 30 seconds, set by DIP switch
• Relays: Three 5 A SPDT
• Relock: Meets BOCA 30-second relock requirement
• Listings: ANSI/UL 294; CSFM; ULC-S533-08; NFPA 101
• Warranty: MagnaCare lifetime replacement, no-fault

Certifications and Listings

• ANSI/UL 294 Listed
• CSFM — California State Fire Marshal Approved
• ULC-S533-08 – Canadian Standard for Egress Door Securing and Releasing Devices
• NFPA 101 – Life Safety Code
