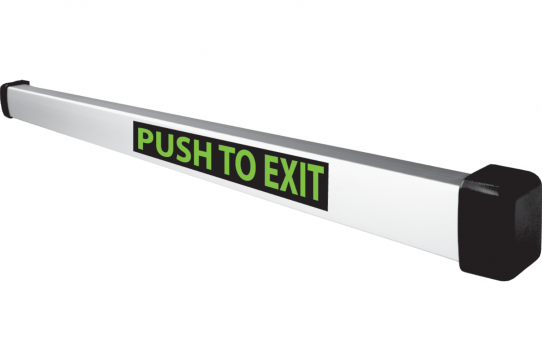

SDC MSB550-2W Series Non-Latching Microswitch Bar, Weatherized

$291.90 $417.00

Overview

The SDC MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications.

When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion.

The MSB5500W is an economical alternative to sensor activated bars.

More Info +


Select Model:
Select Length:

Qty

Product Details

Product Overview

The Security Door Control MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion. The MSB5500W is an economical alternative to sensor activated bars.

Features

  • Water Sealed Switches - The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity.
    Switch body meets IP67 (IEC 529) requirements.
  • Heavy Duty Construction - The MSB550W utilizes heavy-duty aluminum extrusion and rugged end caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.
  • Only 1/8 inch Total Bar Movement - The MSB550W has a maximum movement of only .125 inch. Trigger activation to release the electromagnetic lock is quick and quiet.
  • Perfect Companion for Gate Lock Solutions - The MSB550W’s watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.

Model

  • MSB550-2WV - Weatherized Mechanical Switch Bar, 628 Aluminum Anodized
  • MSB550-2WY - Weatherized Mechanical Switch Bar, 335 Black Anodized

Options

  • Standard Length, 36 inch
  • Bars for wide doors available 42 inch, 48 inch (call for availability)
  • All bars may be feild cut

Specification

  • Contacts: 2 SPDT, 3amp @ 30VDC (RESISTIVE)
  • Operating Temperature: -40°F to 185°F
Also Known As
SDC-MSB550-2WV, SZ-MSB550-2WV, SDC-MSB550-2WY, SZ-MSB550-2WY
Finish
(selectable)
Manufacturer
SDC Security
Manufacturer Warranty
5 Year
Model Number
MSB550W series
Power Requirements
24VDC/12VDC
UPC Code
712905468808
Usage
Weather Resistant
