Securitron, AQL4-D8E1 Dual Voltage Power supply, UL 294

Product Overview

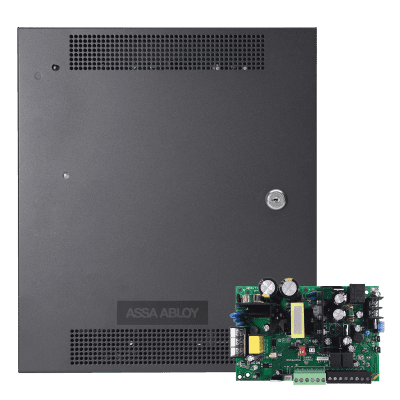

The Securitron AQL4 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. (batteries sold separately)

They provide 4 Amp @ 12 VDC or 3 Amp at 24 VDC.

Features

• Selectable 12/24 VDC output
• 4 Amp @ 12VDC
• 3 Amp @ 24VDC
• Up to 91% efficiency
• Integrated Fire Alarm Interface (FAI)
• Power Supply outputs are Class 2 power limited
• UL 294

Models

• AQL4-D8E1: Dual Voltage 12/24 Power supply with (8) Output Distribution Board, fused, UL 294 Listed

Options

• (none)

Electrical Specifications

• Input: 120 or 230 VAC input
• Output: 4 Amp at 12VDC, 3 Amp at 24VDC (selectable)
• Output Distribution: (8) Individual Outputs, fused

Mechanical Specifications

• Dimensions: 14 inches H x 12 inches W x 4.5 inches D
• Weight: 8.5 lbs

*batteries sold separately
