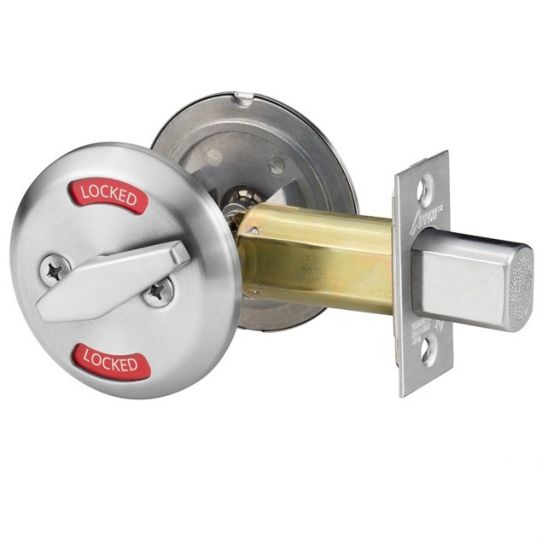

Arrow, E50 V54 Series Occupancy Indicator Deadbolt, Grade 2

Product Overview

The new and improved Arrow E V54 Series occupancy indicator deadbolt provides the ultimate in privacy assurance with bold visual indicators on both the inside and outside of the door. The Arrow E Series occupancy indicator uses an emergency key override to unlock the door from the outside in case of emergency. When the deadbolt is in the locked position, an external slot is exposed that provides for the use of the override key. This product is ideal for use in public restrooms, as a bathroom deadbolt, dressing rooms, nursing mothers' rooms and other areas requiring visual communication of use and assured privacy.

Specifications

• Construction: solid one-piece with decorative scalp
• Backset: 2-3/4 in (69.85 mm) or 2-3/8 in (60.31 mm), specified at order
• Door thickness: 1-3/8 to 1-3/4 in (34.93 to 44.45 mm)
• Deadbolt throw: 1 in (25.40 mm), solid steel with hardened steel pin insert
• Strike: #395 strike pack (metal and wood), included
• Handing: ships for right hand doors; converts to left hand with no tools
• Emergency key: 1 included, unlocks from the outside
• Certification: ANSI A156.36 Auxiliary Locks, Grade 2

Models

• E50 26D V54 - Indicator Deadbolt, "Vacant/Occupied", Satin Chrome Finish
• E50 3 V54 - Indicator Deadbolt, "Vacant/Occupied", Bright Brass Finish
• E50 10 V54 - Indicator Deadbolt, "Vacant/Occupied", Satin Bronze Finish
• E50 10BE V54 - Indicator Deadbolt, "Vacant/Occupied", Dark Oxidized Bronze Finish
• E50 BSP V54 - Indicator Deadbolt, "Vacant/Occupied", Black Suede Power Coat Finish
• E50 15 V54 - Indicator Deadbolt, "Vacant/Occupied", Satin Nickel Plated Finish
