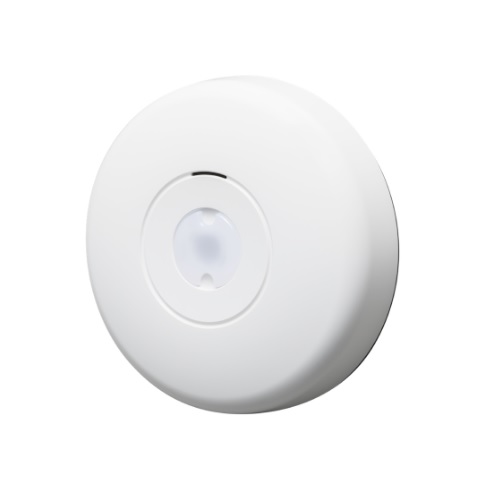

TAKEX, VS-1000E Vape & Smoke Detection Sensor with Alarm

Product Overview

Introducing VS-1000E, a cutting edge Vape and Smoking Sensor designed to address the growing concern of vaping and smoking in schools, restrooms, movie theaters, bathrooms, restaurants, offices and similar environments.

VS-1000E leverages a high-sensitivity particle detection system coupled with advanced algorithms to adapt to changing environmental conditions, ensuring rapid and reliable identification of vaping and smoking activities.

Unlike many vape sensors, the VS-1000E operates independently without the need for app-based management, offering seamless, license-free operation.

Standard Features

• Adjustable detection sensitivity (Standard/Low)
• Configurable Alarm Output for integration with existing alarm systems, (NC or NO)
• Built-in Sounder (10sec, 30sec, continuous, disable)
• Built-in LED Indicator
• Simple Installation, twist-lock base

Manufacturer Specifications

• Model: VS-100E
• Supply Voltage: 10.5V to 28V DC (non-polarity)
• Current Consumption: 85mA max.
• Mounting: Indoor (Ceiling / Wall)

ENVIRONMENTAL SPECIFICATIONS

• Ambient temperature: +32°F to +122°F (0°C to +50°C) without condensation / frozen

Finishes

• White
