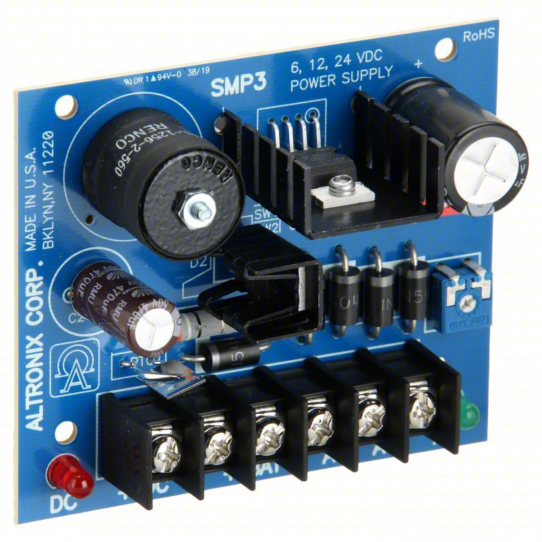

Altronix, SMP3 power supply/charger board 6VDC, 12VDC or 24VDC output

Name: Altronix, SMP3 power supply/charger board 6VDC, 12VDC or 24VDC output
Brand: maglocks
SKU: SMP3
Price: 53.15 USD
Availability: InStock

$53.15 ~~$66.44~~

Product Overview

The Altronix SMP3 is a power supply/charger that converts a 16-28VAC input to a 6, 12, or 24VDC output. This power supply/charger is typically used in access control, security, and CCTV systems.

This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power

Its compact design and snap track compatibility make installation quick and painless. The built-in charger keeps the backup battery charged to full capacity. In situations where power is interrupted, the SMP3 automatically switches over to backup battery power.

Features and Specifications

2.5A continuous supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.
Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.
Operating temperature: 0° C to 49° C ambient.
Extremely compact design.
Includes battery leads.
Snap Trac compatible (order Altronix model number ST3).

Transformer Requirements (sold separately)

6VDC output - Requires 16VAC / 40VA
24VDC output - Requires 28VAC / 100VA

* Note: Transformers with higher power (VA) ratings may be used for all output voltages selected above provided the input voltage does not exceed 28VAC or 45VDC.

Dimensions

Dimensions (approximate): 3 inch W x 3.5 inch L x 2 inch H (76.2mm W x 88.9mm L x 50.8mm H)

Specifications

Input: 16-28 VAC
Output: Selectable 6, 12 or 24 VDC, 2.5 A continuous
Transformer (sold separately): 6 VDC output needs 16 VAC/40 VA; 24 VDC output needs 28 VAC/100 VA (higher VA transformers may be used if input does not exceed 28 VAC or 45 VDC)
Battery Charger: Sealed lead acid or gel; zero voltage drop on switchover; battery leads included
Protection: Short circuit and thermal overload
Operating Temperature: 0°C to 49°C ambient
Dimensions (approximate): 3 in W x 3.5 in L x 2 in H (76.2 x 88.9 x 50.8 mm)
Warranty: Lifetime

Also Known As:

AX-SMP3, ALT-SMP3, ALTRONIX-SMP3

Manufacturer:

Altronix

Manufacturer Warranty:

Lifetime

Model Number:

SMP3

UPC Code:

782239930432

Datasheet PDF

Installation PDF

1 Question asked on Altronix, SMP3 power supply/charger board 6VDC, 12VDC or 24VDC output • Ask a Question

Q Jimmy McGee • 07/12/2023, 2:46:31 PM Do you stock the 28 volt ac plug in transformer for the Altronix SMP3 power supply?

A 07/14/2023, 5:14:22 PM Per the SMP3 Installation document they offer an open-framed 28VAC Transformer p/n# T2428100 which can be found on our website. These are typically in-stock but inventory is subject to change. Please give us a call with any additional questions or to confirm lead-times, 1-866-500-5625
