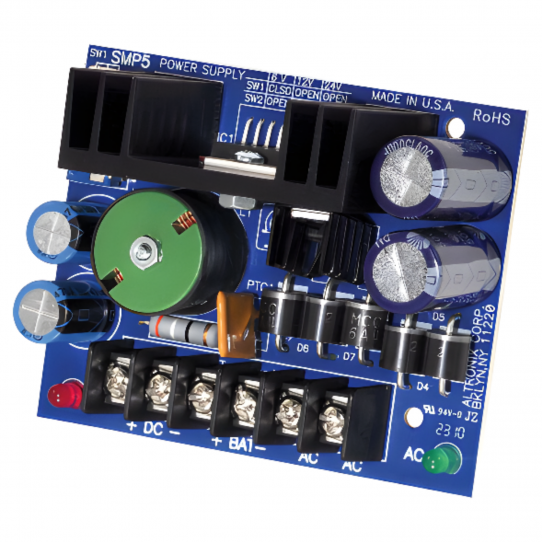

Altronix SMP5 Switching Power Supply Board

Product Overview

SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Features and Specifications

• 6VDC, 12VDC or 24VDC selectable output.
• 4amp supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.3amp.
• Zero voltage drop when switching over to battery backup.
• Operating temperature: 0 ° C to 49 ° C ambient.
• Extremely compact design.
• Includes battery leads.
• Snap Trac compatible (order Altronix model number ST3).
• Lifetime Warranty.

Dimensions

• Dimensions (approximate): 3 inch W x 3.5 inch L x 2 inch H (76.2mm W x 88.9mm L x 50.8mm H)
