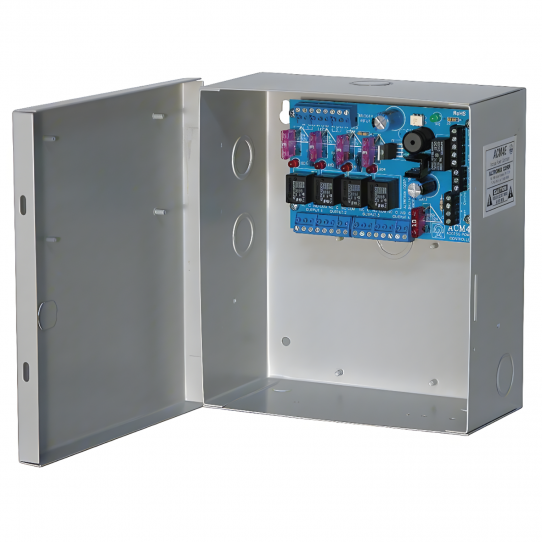

Altronix, ACM4CBE Access Power Controller, 4 Fused Relay Outputs, FAI, with Enclosure

Product Overview

Altronix ACM4CBE converts one (1) 12 to 24 volt AC or DC input into four (4) independently controlled Class 2 rated PTC protected power-limited auto-resettable outputs rated at 2A each.

This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power.

The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the four (4) outputs.

Input:

• 12 to 24 volt AC or DC operation (setting not required)
• (0.4A @ 12volt, 0.2A @ 24 volt current consumption with all relays energized).
• *AC applications not evaluated by UL.
• Main fuse is rated at 10/250VA.
• Power supply input options:
• a) One (1) common power input (board and lock power).
• b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power).
• Four (4) Access Control System trigger inputs:
• a) Four (4) normally open (NO) inputs.
• b) Four (4) open collector sink inputs.
• c) Any combination of the above.

Output:

• Four (4) independently controlled outputs:
• a) Four (4) Fail-Safe and/or Fail-Secure power outputs.
• b) Four (4) dry form "C" 5A rated relay outputs
• c) Any combination of the above
• Four (4) auxiliary power outputs (unswitched).
• Output ratings:
• Fuses are rated 2.5A each.
• Main fuse is rated at 10A
• Note: Total output current is determined by the power supply, not to exceed a maximum of 10A total.

Features

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the four (4) outputs.
• Fire Alarm disconnect input options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input from FACP signaling circuit.
• FACP output relay (form "C" contact rated @ 1A 28VDC not evaluated by UL).
• Removable terminal blocks facilitate ease of installation.

Visual Indicators:

• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• Lifetime Warranty

Dimensions

• Enclosure: 7.5 inch W x 8.5 inch H x 3.5 inch D (191 mm W x 216 mm H x 89 mm D)

Agency Listings

• UL Listed for: Access Control System Units (UL294)
• UL Listed for: CSA Standard C22.2 No.205-M1983, Signal Equipment
