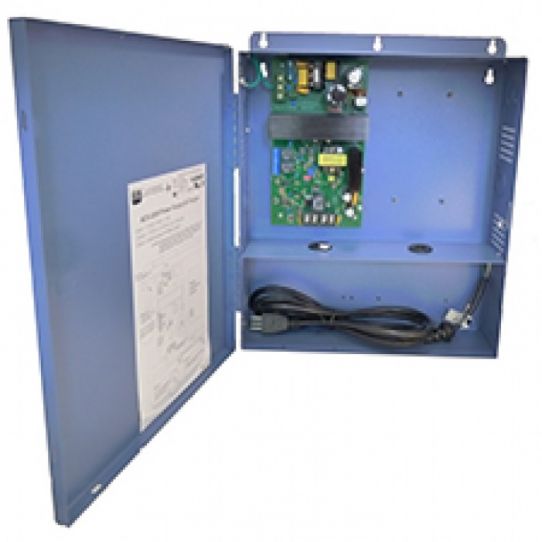

ACS-2000 12/24 VDC 2.5 Amp Power Supply / Charger

Product Overview

The ACS-2000 provides a robust 2.5 amps of power for access control or universal power, selectable for either 12VDC or 24VDC, yet typically costs less than competitive products providing less than half as much power.

In access control installations, one ACS-2000 may be sufficient to power numerous devices for several doors that might otherwise require multiple power supplies. A battery back-up charging circuit for lead acid or gel type batteries (not included) allows automatic transfer to back-up power upon AC failure with zero voltage drop.

Includes 8-channel distribution board with PTC fuse protected outputs, standard

Standard Features

• Top mounting flange
• 8-channel distribution board with PTC fuse protected outputs
• Enclosure accommodates two 12VDC / 7AH batteries (sold separately)
• Can be used as access control power supply and/or battery charger
• Class 2 rated power limited output
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection
• Built-in charger for sealed lead acid or gel type battery backup
• Maximum charging current 0.7amp
• Zero voltage drop upon transfer to battery backup
• AC input and DC output LED indicator
• AC fail supervision (from ‘C’ contact rated at 1amp 28VDC)
• Low battery and battery presence supervision (from ‘C’ contact rated at 1amp 28VDC)
• Includes mounting Studs for optional CCTV camera board
• 1/2 inch and 3/4 inch combination knockouts
• UL Power cord with safety clip (included)

Technical Specifications

• Input: 115VAC
• Output: 2.5 A, 12VDC or 24VDC selectable output
• Cabinet dimensions: 13-1/2 inch L X 13-1/2 inch W X 3-3/4 inch D
• Weight: 8.6 lbs
