Alarm Controls, 600L Magnetic Lock 600lbs Holding Force w/ LED indicator

Name: Alarm Controls, 600L Magnetic Lock 600lbs Holding Force w/ LED indicator
Brand: maglocks
SKU: 600L
Price: 240.89 USD
Availability: InStock

$240.89 ~~$283.40~~

Alarm Controls 600 pound Single Magnetic Lock, model 600L. The 600L includes status LED and provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation.

The 600L is 12 or 24 VDC, jumper selectable and can be used with any access control system.

E-Z mount system, No special tools required

U.L. and Canadian U.L. Listing number R16759

All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications.

** In-Swing applications of this maglock require a Z bracket (available below)

** Magnetic locks require a power supply (available below)

Specify Lock Finish:

Options:

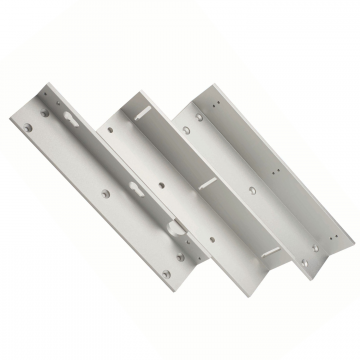

AM3370 - 3 Piece Z-bracket kit, required for inswing doors (US28 Clear Anodized Aluminum finish) +$135.16

Qty

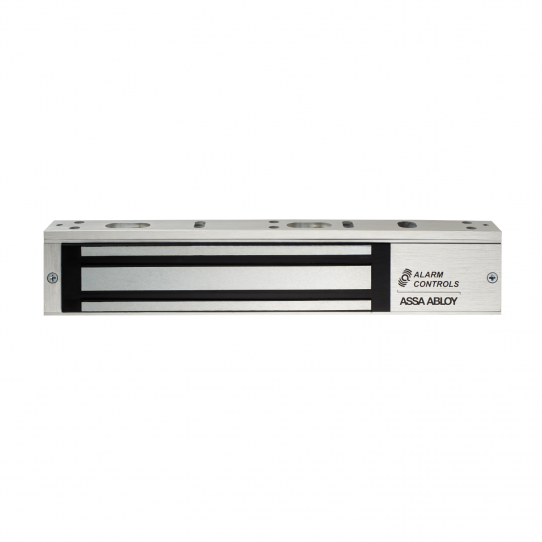

600L Magnetic Lock with status LED

Product Overview

Alarm Controls 600 pound Single Magnetic Lock, model 600L. The 600L includes status LED and provides a minimum of 600 pounds holding force and utilizes the ACC E-Z mount system for easy installation.

The 600L is 12 or 24 VDC, jumper selectable and can be used with any access control system.

Product Features

600lbs holding force
LED indicating light
E-Z mount system, No special tools required

Specifications

Holding Force: 600 lb minimum
Voltage: 12 or 24 VDC, jumper selectable
Current Draw: 505 mA at 12 VDC; 260 mA at 24 VDC
Magnet Size: 9 7/8 inches L x 1 11/16 inches H x 1 inch W
Armature Size: 7-1/4 inches L x 1-1/2 inches H x 1/2 inch W (184 mm x 38 mm x 13 mm)
Indicator: LED
Lock Features: Built-in arc suppression; instant release, no hysteresis
Listings: UL 294; UL 10C fire rated; CAN/ULC-S104 fire door conformant; UL 864; CAN/ULC-S527
Finish: Clear Anodized (US28) standard; Duronic (US40) special order
Warranty: Lifetime

Compatibility and Options

Compatible with any access control system
Non-aluminum parts are plated to resist corrosion
Dress-up covers in polished chrome and brass are available. Give us a call

Also Known As:

600L, 600l, AC600L, ALA300600L, AC-600L

Manufacturer:

Alarm Controls

Manufacturer Warranty:

Lifetime

Model Number:

600L

Power Requirements:

24VDC/12VDC

Status Monitor:

n/a

Overview Datasheet PDF

Datasheet PDF

Installation PDF

Magnetic Lock Accessories PDF

1 Question asked on Alarm Controls, 600L Magnetic Lock 600lbs Holding Force w/ LED indicator • Ask a Question

Q Jay • 11/24/2020, 0:01:31 AM Does the magnet comes with switch?

A 12/01/2020, 12:34:08 PM No, the magnet does not come with a switch. The 600L magnet includes a metal armature plate, hardware pack and standard mounting bracket for an outswing door installation. Switches for (entry & exit) along with a low-voltage power supply would be required and are sold separately. For help putting together a complete parts list for your project please give us a call at 1-866-500-5625 and we would be happy to assist.
