433Mhz Long Range Receiver 2 Relays 433RECTSMINI2OUT
Processing...

433Mhz Long Range Receiver 2 Relays 433RECTSMINI2OUT

$73.50

Overview

433Mhz Long Range Receiver with 2 Relays, 433RECTSMINI2OUT

The receiver has 2 output relays (NO and NO/NC contacts) controlled from a compatible 433Mhz trasmitter from up to 500ft away (clear line of site). Perfect for gates, garage door, rolling shutters, awnings, electronic locks and access control systems.  Programming is done in self-learning mode by means of one button, up to 85 remotes. IP 65 housing allows for external installations.

Recommended for:

  • Electronic gate operation from a vehicle
  • Long range wireless access control
  • Hidden rooms
  • Large office buildings

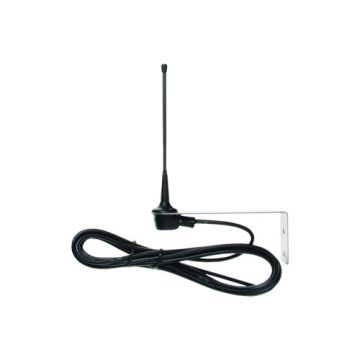

500ft clear line of site range, up to 1,200ft with optional antenna kit!!!

Please note: No transmitter are included with the receiver.

More Info +


Options

Qty

Product Details

Product Overview

The receiver has 2 output relays (NO and NO/NC contacts) controlled from a compatible 433Mhz trasmitter from up to 500ft away (clear line of site). Perfect for gates, garage door, rolling shutters, awnings, electronic locks and access control systems. Programming is done in self-learning mode by means of one button, up to 85 remotes. IP 65 housing allows for external installations.

The receiver is designed for the control of automatic closing systems and anti-burglar systems, thanks to its very high security coding system (KeeLoq ® Hopping code). The operating frequency is among the European harmonised frequencies; the product fully complies with the EMC European Regulations (CE). The code sent by the transmitter changes at every activation, avoiding any scanning and copying risk. A special algorithm allows to keep synchronized transmitter and receiver.

Standard Features

  • 2 Relays: (1) NO, (1 )NC/NO SPDT
  • Relay contacts rated at 3A 12/24vdc
  • 500ft operating range
  • 85 user memory
  • IP65 housing

Technical Specifications

  • Power Requirements: 12-24VAC/VDC
  • Current consumption: 49mA/12VDC, 55mA/24VDC
  • Operating temperature: -20 to 70 deg C
  • Overall dimensions: 80L x 80W x 50H mm
Also Known As
433RECTSMINI2OUT
Manufacturer
Transmitter Solutions
Manufacturer Warranty
1 Year
Model Number
433RECTSMINI2OUT
Power Requirements
24VDC/12VDC
1 Question asked on 433Mhz Long Range Receiver 2 Relays 433RECTSMINI2OUT



Q Zachary R Shipley • 02/02/2023, 9:11:40 AM What are the compatible remotes? we have linx lrms433a remotes would these work with your unit ?
A 02/03/2023, 3:59:15 PM We cannot recommend using remotes from a different wireless receiver/transmitter system as they are unlikely to be compatible. For a list of compatible remotes please see the "Related Products" section below this product listing for all of the 433Mhz remotes. You can also reach us direct by phone at 1-866-500-5625 to go over any additional product questions.
