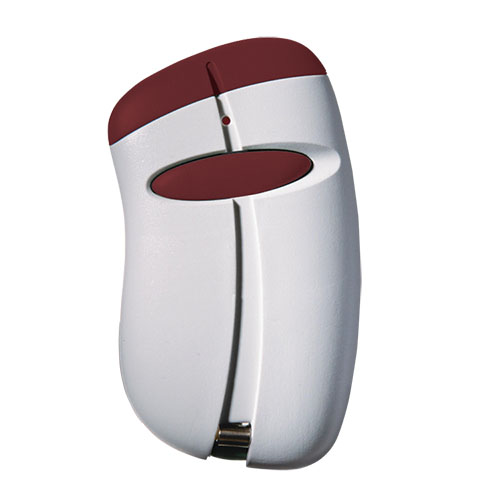

433Mhz Stingray 1 Button Transmitter, Visor Style

Product Overview

The Transmitter Solutions Stingray 433TSPW1V is a visor transmitter operating at 433.92 MHz in ASK modulation. It has been designed for programmable telephone entry systems, anti-burglar systems and access control systems operating at 433.92 MHz. The code sent by the transmitter includes a 16 bit security code which allows up to 65,536 number combinations and 8 bits of facility code which allows up to 256 facilities.

Each transmitter is individually numbered and can be used with any receiver capable of receiving a 26 bit input. The 23A alkaline battery has a life of about 12-18 months. The product fully complies with Part 15 of FCC Regulations.

Technical Specifications

• Range in free space: 60 - 120 yd
• Operating temperature: -20degF - 131degF (-29degC - +55degC)
• Overall dimensions: 3.26 inch x 1.88 inch x 0.62 inch
• Weight: 1oz (20 gr)

Specifications

• Model: 433TSPW1V
• Also known as: RAY433TSPW1V
• Manufacturer: Transmitter Solutions
• Type: Visor style transmitter (Stingray), 1 button
• Operating frequency: 433.92 MHz (ASK modulation)
• Range in free space: 60-120 yd
• Code: 16-bit security code (65,536 combinations) and 8-bit facility code (256 facilities)
• Battery: 23A alkaline
• Battery life: 12-18 months
• Operating temperature: -20°F to 131°F (-29°C to 55°C)
• Dimensions: 3.26 inches x 1.88 inches x 0.62 inches
• Weight: 1 oz (20 g)
• Compliance: FCC Part 15
• Warranty: 2 Year
