Single Door Remote Buzz-In Kit, electric strike

$152.90

Overview

Remotely release your office door from the convenience of the reception desk with this easy to install kit.

For standard single latch doors with aluminum or hollow metal frames the 25-4u Electric Strike will install in the door jamb allowing the release of a locked door.

Works well With: Metal Frame Doors with Cylindrical Locksets

Not recomended for: Aluminum frame glass doors with flip out or hook deadbolts, Wooden frame or residential doors, Double doors

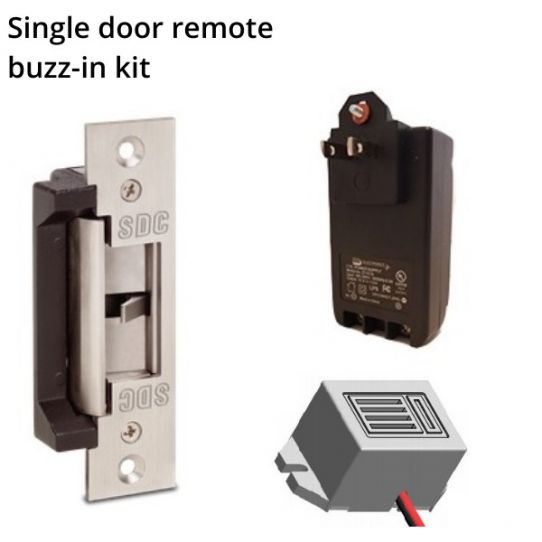

Kit Includes:

25-4U Strike for Single Latch Doors
MC-Buzz Audio Buzzer
PS12-2 plug-in 12VDC, 2A power supply

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625.

Locksets should have the Storeroom Function* to ensure proper operation of this system.

*Storeroom Function - Dead locking latch bolt operated by key in outside lever, or by operating inside lever.

Product Overview

Complete single door remote release Buzz-In kit for office doors includes electric strike and your choice of release options. Great for reception desks to allow entry through a locked door. Under normal operation the Electric Strike will remain in the locked positon, by pressing the release button the strike will unlock allowing the door to be pushed open.

Kit Includes

25-4u electric strike for Medium-High traffic areas
MC-Buzz audio indicator
PS12-2 plug in power supply
* MC-Buzz buzzer creates an audible buzz upon unlock.

Features

Grade 2 electronic strike for use with single latch mechanical locksets, audio buzzer to alert of door release, plug in power supply and the release option of your choice.

Maglocks.com recommends using a STOREROOM function latch assembly.

Specifications

25-4u Specifications: 4-7/8 inch x 1-1/4 inch Square Corner Faceplate for hollow metal frames. *retroft tabs included
PS12-2 Power Supply Specifications: 2A at 12VDC.

Works well With:

Metal Frame Doors with Cylindrical Locksets

Not recomended for:

Aluminum frame glass doors with flip out or hook deadbolts
Wooden frame or residential doors
Double doors

Great For

Medical offices
Dentist offices
Pawn shops
Boutique shops
Salons
Medical Marijuana Dispensaries
Waiting rooms
Receptionist release

If you have any questions regarding which kit will be best for your project please contact us Toll Free at 1-866-500-5625.

Locksets should have the Storeroom Function* to ensure proper operation of this system.

*Storeroom Function - Dead locking latch bolt operated by key in outside lever, or by operating inside lever.

Also Known As

Buzz-in Kit, Strike Kit, Single door kit

For Use With

Cylindrical Locksets, Hollow Metal Door Jambs

Manufacturer

Maglocks.com

Manufacturer Warranty

2 Year

Model Number

office kit with strike

Power Requirements

12VDC

Installation PDF

WRT-2 Option Wiring Diagram

5 Questions asked on Single Door Remote Buzz-In Kit, electric strike • Ask a Question

Q Tony • 12/04/2018, 9:52:36 AM will this operate it the receiver is placed over a ceiling tile

A 12/04/2018, 2:37:32 PM The WRT-2 receiver should operate through a drop ceiling although range may be slightly decreased. Placement should also account for other barriers including ceiling beams (rafters), Conduit, water pipes, etc.

Q Eddie • 02/01/2020, 8:47:40 AM What does the fail/safe , fail/ secure screw do ?

A 02/03/2020, 11:16:33 AM This screw allows you to select between fail-secure (locked without power) vs fail-safe (unlocked without power) operation. The default position is fail-secure.
