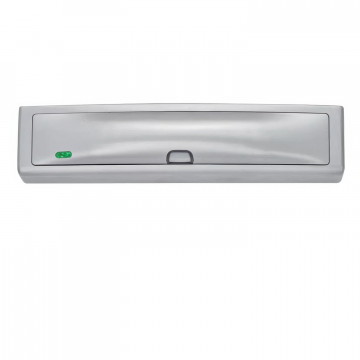

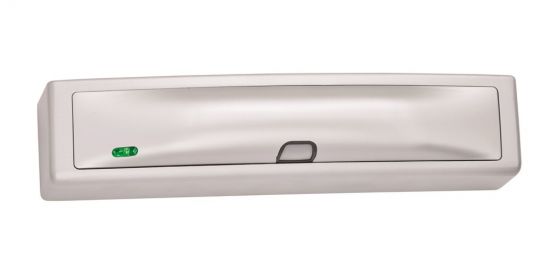

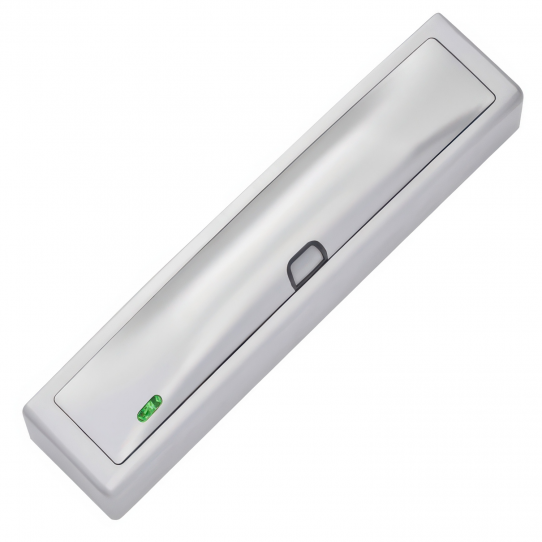

Securitron M680EBDX EcoMag Magnalock w/PIR sensor, 1200lbs

$824.80 $1,031.00

Overview

Everything included in the Securitron M680EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.

More Info +


Specify Finish (628 Aluminum Finish Standard, All others Special-Order):

Qty

Product Details

Product Overview

The Securitron M680EBDX offers built-in smart voltage sensing microprocessor controls Securitron’s integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The M680E with EcoMag® technology from Securitron® delivers the same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption. The Securitron M680EBDX includes everything in the Securitron M680EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.

  • Intelligent - Optional door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods, dropping the power draw as low as 20mA at 12V.
  • Versatile - Optional integrated PIR Request to Exit is an available option for this new magnalock, providing the flexibility to customize as needed.
  • Eco-Friendly - With up to 80% decreased energy consumption, and biodegradable packaging insert, the Securitron M680E is the most eco-friendly magnalock available today.
  • Easy installation - Updated strike plate mounting template makes for faster, easier installation.

Product Features

  • Strike plate mounting template provides the easiest install for out-swing doors
  • LED Indicator shows the lock is secure, open, or has an incomplete bond
  • Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
  • Integrated BondSTAT and integrated Door Position Switch
  • Integrated Passive Infrared Request to Exit Motion Sensor
  • Autosensing dual voltage with microprocessor technology
  • Adjustable automatic relock timer (0 to 30 seconds)
  • Energy efficient, low power usage
  • Size optimized for use with door closers
  • MagnaCare® lifetime replacement, no fault warranty

Product Options

  • Securitron M680EBDX: Everything included in the Securitron M680EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.

Specifications

  • Holding Force: 1200 lbs [544kg]
  • Dimensions: Magnalock: 11-1/2 inches L x 2-9/16 inches D x 2-1/2 inches ; Strike: 10-7/8 inches L x 9/16 inches D x 2 inches H
  • Electrical: Maglock Average Power Draw, 113mA (±10%) at 12VDC or 52mA (±10%) at 24VDC; Maglock Maximum Power Draw, 515mA(±10%) at 12VDC or 290mA (±10%) at 24VDC
  • REX Power* +25mA (±10%) at 12VDC or +10mA (±10%) at 24VDC

*A separate continuous power input is required to power the REX.

Operating Temperature

  • +32 to +110F [0 to +43C]

Indoor use only

Finishes

  • 628 - Satin Aluminum Clear
  • 613E – Dark Oxidized Satin Bronze

Additional Special Order Finishes **

  • 605 - Bright Brass
  • 606 - Satin Brass
  • 612 - Satin Bronze
  • 629 – Bright Stainless Steel
  • 630 - Satin Stainless Steel
  • BSP – Black Suede Powder
  • WSP - White Suede Powder (photos above)

Base materials may not be stainless steel

** Please contact maglocks customer support for product details, availability and pricing.

Certifications and Listings

  • EPD - Environmental Product Declaration
  • UL 10C Fire Rated, 1 Hour
  • CAN/ULC-S104 Fire Door Conformant
  • UL 1034 Burglary-Resistant Listed
  • UL 294 Recognized Component
  • ANSI/BHMA A156.23, Grade 2; E18501
  • California State Fire Marshal Listed
Also Known As
SEC100M680EBDX628, M680EBDX-628
Finish
(selectable)
Fire Rating
1-Hr Fire Rated
Grade
Grade 2
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
M680EBDX
Power Requirements
24VDC/12VDC
Status Monitor
Standard
UPC Code
784607044840
Usage
Interior Use
1 Question asked on Securitron M680EBDX EcoMag Magnalock w/PIR sensor, 1200lbs



Q Kenneth Lopez • 11/27/2023, 11:10:29 AM Hi, We specified the M680EBDX for one of our projects. The owner is asking what would happen during a power outage, would the REX work? is there a backup battery for this situation? Thanks,
A 11/28/2023, 10:23:27 AM The M680EBDX is a fail-safe lock which means if power to the lock is lost it would automatically unlock. For security purposes, a power supply with a backup battery can be used to keep the lock fully operational in the event power was lost at the building. To go over these options please give us a call direct at 1-866-500-5625
