Securitron, M380EBD BSP 600lb Maglock with Bondstat Monitor & DPS, Black Suede Finish

Product Overview

Intelligent, stylish and secure, with up to 80% reduction in energy consumption over the previous M380 Series.

With integrated features such as built-in smart voltage sensing, tamper sensor and an updated strike plate mounting template, the M380E joins the M680E in the family of sustainable magnalocks.

The M380EBD offers additional integrations, such as Securitron’s patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods).

Models

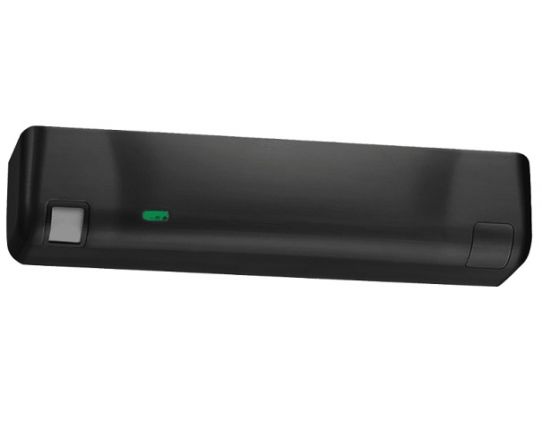

• M380EBDBSP - 600lb Magnetic Lock in Black Suede Powder Coat Finish

Features

• Energy efficient, low power usage
• Auto calibration upon installation
• Automatic dual-voltage – no field adjustment required
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Rust resistant – all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds)
• Wire chamber anti-tamper switch
• Size optimized for use with door closers
• Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Specifications

• Electrical Consumption
• Maglock Average Power Draw (±10%)
• 140 mA at 12 VDC
• 90 mA at 24 VDC
• Maglock Maximum Power Draw (±10%)
• 585 mA at 12 VDC
• 310 mA at 24 VDC
• Holding Force: 600 lbs
• Operating Temperature: 32 deg to 110 deg F
• Indoor Use Only
• Shipping Weight: 6.5 lbs

Certifications

• UL 10C Fire Rated, 3 hour
• UL 1034 Listed
• UL 294 Listed
• CAN4-S104, CAN/ULC Listed
• ANSI/BHMA A156.23, Grade 3
• CSFM—California State Fire Marshal Approved
