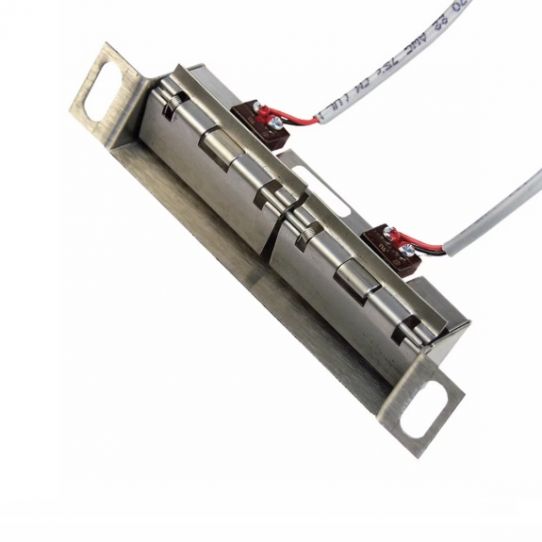

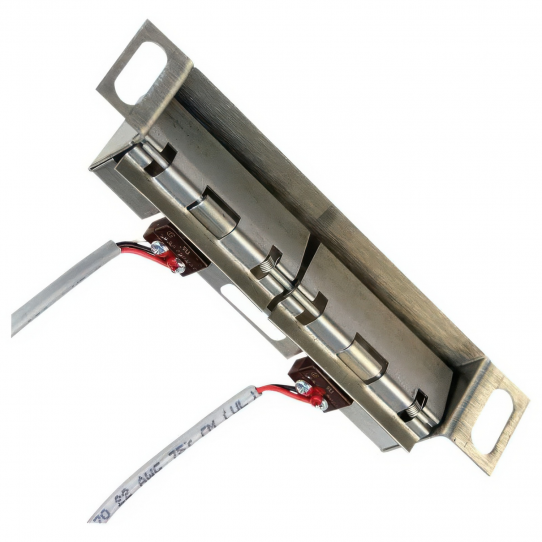

Securitron, LML-2 Latch Monitor Switch, Dual Switches

Product Overview

The LM Series is designed for reporting back to an alarm system to indicate that a door is latched, thereby reducing the possibility of false alarms. Can also be used to provide an initiate signal to model XDT delayed egress logic timers.

Product Features

• Electronically verify mechanical latch and bolt positions
• Detect and report that a door is actually latched or bolted, not just closed
• Installs easily in a standard 4-7/8 inch strike cutout, conceals behind existing hardware
• Dual SPDT switches, monitors mortise latch and deadbolt separately

Product Specifications

• Contact Rating: SPDT 2A at 24V
• Operating Temperature: -40° F to 160° F [-40° C to 71° C)

Models

• LML-2 - Latch Monitor Switch, dual SPDT switches monitors mortise latch and deadbolt separately, fits ANSI 4-7/8 inch strike cutouts

Certifications

• UL 634 Listed
• ULC/ORD-C634 Listed
• ANSI/UL 294 Listed
• CSFM California State Fire Marshal Approved
