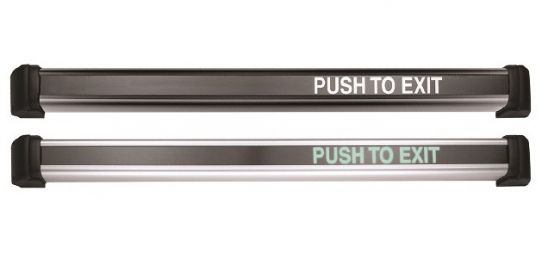

Securitron DSB Dual Sense Bars

$420.00 $525.00

Overview

The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-rated doors. Specifically designed to address the most current building and life safety codes, the DSB features two independent switch circuits to release the lock.

For indoor use only, the DSB can be installed on metal, aluminum, or wood doors of all types. Meets no special tools or knowledge requirements.

More Info +


Select Model:

Qty

Product Details

Securitron DSB Dual Sense Bars

Product Overview

The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-rated doors.

Specifically designed to address the most current building and life safety codes, the DSB features two independent switch circuits to release the lock. Simply touching the bar or engaging its mechanical movement will allow free egress. For indoor use only, the DSB can be installed on metal, aluminum or wood doors of all types. Meets "no special tools or knowledge" requirements.

Product Features

  • The most dependable exit device available for magnetically locked openings
  • Less than 1/8 inch mechanical movement and ultra-reliable touch sense technology working together in a single exit bar
  • Touch sensing and redundant movement-activated switches complies with current fire and life safety egress codes
  • Uses same mounting pattern as the TSB
  • Circuit board is immune to electrostatic discharge - switching power supplies, proximity and garment readers and neon signs
  • Bounce resistant to false triggering from outside impact
  • Three standard lengths: 36 inch, 42 inch or 48 inch
  • All metal construction will stand up to rugged interior environments
  • Like the TSB-3, the DSB allows field cutting to fit non-standard door widths
  • Optional illuminated Push To Exit via internal fiber optic strip
  • 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
  • Available ElectroLynxâ„¢ ready
  • Operates on either 12 or 24VDC
  • Tested to 27,000 volts electrostatic discharge
  • UL Listed

Specification Data

  • Voltage: (12 or 24VDC)
  • Current Draw:
    • Dual Sense Bar Only -  24mA
    • Dual Sense Bar with Illumination - 44mA
  • Operating Temperature: +32 to +120F [0 to +49C]

Models

  • DSB-CL = DSB - 36 inch, Clear Anodized
  • DSB-CL42 = DSB - 42 inch, Clear Anodized
  • DSB-CL48 = DSB - 48 inch, Clear Anodized
  • DSB-CLI = DSB - 36 inch, Illuminated, Clear Anodized
  • DSB-CLI42 = DSB - 42 inch, Illuminated, Clear Anodized
  • DSB-CLI48 = DSB - 48 inch, Illuminated, Clear Anodized
  • DSB-BK = DSB - 36 inch, Black Anodized
  • DSB-BK42 = DSB - 42 inch, Black Anodized
  • DSB-BK48 = DSB - 48 inch, Black Anodized
  • DSB-BKI = DSB - 36 inch, Illuminated, Black Anodized
  • DSB-BKI42 = DSB - 42 inch, Illuminated, Black Anodized
  • DSB-BKI48 = DSB - 48 inch, Illuminated, Black Anodized

*Overall Length:

  • 36 inch Door = 34-3/16 inches [868mm]
  • 42 inch Door = 40-3/16 inch [1021mm]
  • 48 inch Door = 46-3/16 inch [1173mm]

If it is necessary to shorten the bar to achieve proper installation, the bar can be cut in the field. The bar should always be cut from the end which houses the main (touch sense) PC board. To do this the end mounts must be completely removed from the ends of the bar assembly.

Warranty

Certifications and Listings

  • CAN/ULC-S533 Listed
  • UL Certificate of Compliance (CoC)
  • ANSI/UL 294 Listed
  • CSA-C22.2 No.205 Listed
  • NFPA 101
Finish
(selectable)
Maglocks.com Rating
Best
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
DSB-CL and DSB-BK
Power Requirements
24VDC/12VDC
