Securitron, BPS-12 Series Boxed Power Supplies, 12VDC Output

$310.40 $388.00

Overview

Recommended where an interface with a fire alarm system or battery backup is needed.

All BPS models are UL Class 2 listed, allowing for wire runs without the use of conduit from power supply to door.

More Info +


Select Model:

Qty

Product Details

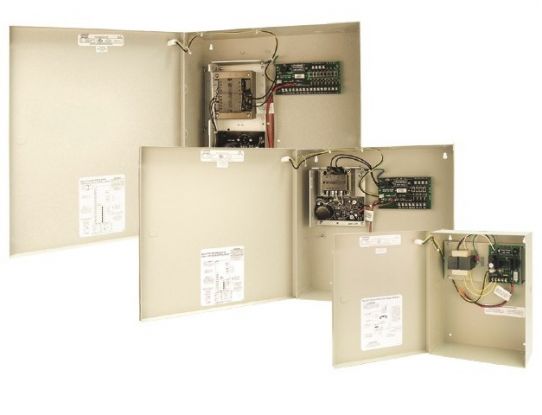

BPS-12 Series Boxed Power Supplies, 12VDC output

Product Overview

The BPS series of power supplies delivers linear technology recommended by most manufacturers of sensitive electronic access control and security components. Safe for use with readers, electric strikes, and maglocks, these units interface to fire alarm systems and provide battery backup.

*batteries NOT included.

Product Features

  • 12VDC output
  • Rugged steel enclosure
  • Fire Alarm relay connection for release of all devices upon fire alarm activation
  • Sealed lead acid-gel battery charging capability (batteries not included)
  • UL Class 2, linear regulated power supply provides the cleanest power available sensitive, active safety and security devices
  • MEA - City fo New York Approved
  • UL 294 Listed

Models

  • BPS-12-1: Power Supply, 12VDC output, 1 Amp
  • BPS-12-3: Power Supply, 12VDC output, 3 Amps
  • BPS-12-45: Power Supply, 12VDC output, 4.5 Amps
  • BPS-12-6: Power Supply, 12VDC output, 6 Amps
  • BPS-12-9: Power Supply, 12VDC output, 9 Amps (discontinued)
  • BPS-12-15: Power Supply, 12VDC output, 15 Amps

Specification Data

  • Input Voltage: 120VAC
  • Output Voltage: 12VDC
  • Output Current: (varies depending on model selection)
  • Operating Temperature: +32 to +105F [0 to +40C]

Warranty

  • MagnaCare Lifetime Replacement Warranty
Also Known As
BPS121, SN-BPS121, HES-BPS121
For Use With
Safe for use with readers, electric strikes and maglocks
Manufacturer
Securitron
Manufacturer Warranty
Lifetime
Model Number
BPS-12-1, BPS-12-3, BPS-12-45, BPS-12-6, BPS-12-9,BPS-12-15
Mount
Wall Mount Steel Enclosure
Power Requirements
120VAC
UPC Code
093521240383
Usage
Interior Use Only
