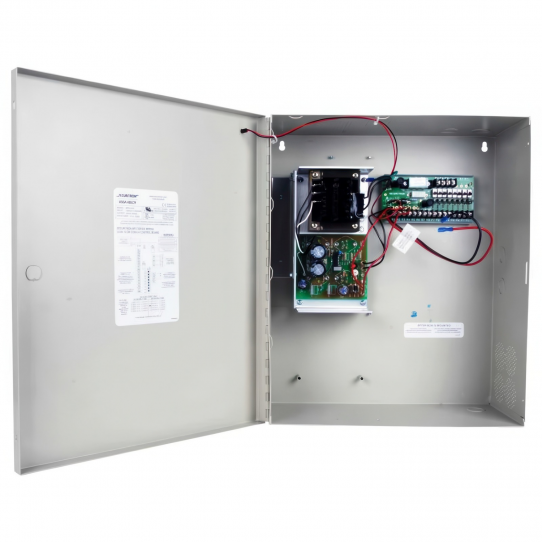

Securitron, BPS-24 Series Boxed Power Supplies, 24VDC Output
$342.79
$413.00
BPS-24 Series Boxed Power Supplies, 24VDC output
Product Overview
The BPS series of power supplies delivers linear technology recommended by most manufacturers of sensitive electronic access control and security components. Safe for use with readers, electric strikes, and maglocks, these units interface to fire alarm systems and provide battery backup.
* batteries NOT included. Two 12VDC batteries wired in series required for 24VDC backup
Product Features
- 24VDC output
- Rugged steel enclosure
- Fire Alarm relay connection for release of all devices upon fire alarm activation
- Sealed lead acid-gel battery charging capability (batteries not included)
- UL Class 2, linear regulated power supply provides the cleanest power available sensitive, active safety and security devices
- MEA - City fo New York Approved
- UL 294 Listed
Models
- BPS-24-1: Power Supply, 24VDC output, 1 Amp (DISCONTINUED/SOLD OUT)
- BPS-24-2: Power Supply, 24VDC output, 2 Amps (DISCONTINUED/SOLD OUT)
- BPS-24-3: Power Supply, 24VDC output, 3 Amps (DISCONTINUED/SOLD OUT)
- BPS-24-4: Power Supply, 24VDC output, 4 Amps
- BPS-24-6: Power Supply, 24VDC output, 6 Amps
- BPS-24-10: Power Supply, 24VDC output, 10 Amps (DISCONTINUED/SOLD OUT)
Specification Data
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Output Current: (varies depending on model selection)
- Operating Temperature: +32° F to +105° F [0° C to +40° C]
Warranty
- MagnaCare® Lifetime Replacement Warranty
Specifications
- Models: BPS-24-4 (4 A); BPS-24-6 (6 A). Also listed as discontinued/sold out: BPS-24-1 (1 A), BPS-24-2 (2 A), BPS-24-3 (3 A), BPS-24-10 (10 A)
- Input Voltage: 120 VAC
- Output Voltage: 24 VDC
- Classification: UL Class 2, linear regulated
- Listings: UL 294; MEA (City of New York approved)
- Fire Alarm: Relay connection releases all devices on alarm
- Battery Charging: Sealed lead acid or gel (batteries not included; two 12 VDC batteries wired in series required for 24 VDC backup)
- Operating Temperature: +32°F to +105°F (0°C to +40°C)
- Enclosure: Rugged steel, wall mount; interior use only
- Warranty: MagnaCare lifetime replacement
