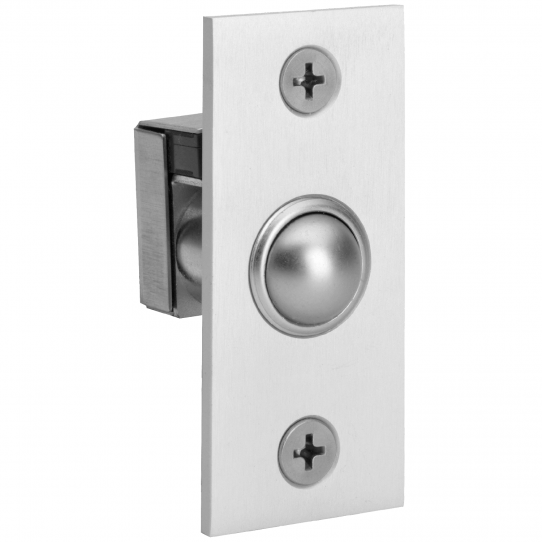

SDC, DPS-11 Door Position Sensor, Adjustable Ball Type, SPDT

SDC DPS series sensors employ electromechanical ball switches to provide a cost-effective means of monitoring door position status (DPS). DPS monitors the current position of the door, open or closed. DPS switches change state when the door is opened or closed.

Installed in the edge of the door frame, DPS switches are wired into remote devices, typically alarm panels or door controllers, to notify facility management of a change in state - aiding in an access control system integrity.

Electromechanical SPDT Ball Switch, Adjustable for wide door gaps.

Compatibility

• Compatible with swinging or sliding doors.
• Recommended uses include communicating doors, mantraps, auto relock switches and high current applications.

Model

• DPS-11, DPS11 - Door Position Sensor, Adjustable Ball Type, SPDT

Specification

• Faceplate: Aluminum 628
• Dimensions: 2-3/4 inches x 1-1/4 inches x 1/8 inches
• Weight: 1lb
• Contact: SPDT
• Rating: 5 Amp @ 30 VDC Resistive
• Depth: 1-1/4 inches
• Door Gap (Max): 3/16 inches
