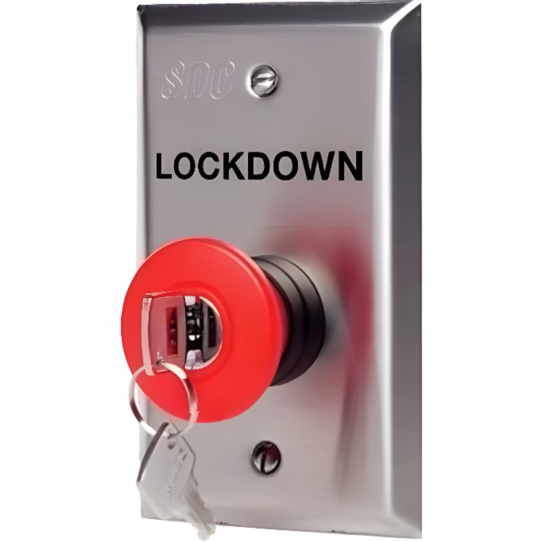

SDC 432KLDUR Lockdown Mushroom Button

$221.20 $316.00

The SDC 423KLDUR LOCKDOWN button latches when depressed and must be reset with the built-in-key. Applications include schools, alarm, panic alarm and emergency door release where systems are restored by authorized personnel only.

Features:

  • 1.5 inch Mushroom
  • Red Button Standard
  • Latching/ key reset DPST contact
Read More

Options:

SDC 432KLDUR Lockdown Latching and Key Reset

1 1/2 inch MUSHROOM BUTTON

PRODUCT OVERVIEW

The SDC 430 Heavy Duty Industrial Series incorporates a 1 1/2 inch round mushroom button with heavy duty contacts. The assembly is capable of withstanding high impact and is ideal for heavy duty high frequency use

The SDC 433KLDUR and 432KUR latches when depressed and must be reset with the built-in-key. Applications include alarm, panic alarm and emergency door release where systems are restored by authorized personnel only. Red Button Standard

FEATURES

  • 1.5 inch Mushroom Exit Switches
  • Heavy Duty to Withstand Impact
  • Water Resistant Contacts
  • Ideal for High Frequency Use
  • Red Button standard

SPECIFICATIONS

  • Contact 6amp @ 30VDC Resistive
  • Wire Connection Screw Terminals
  • Single Gang 2 7/8 inches x 4 1/2 inches x 20 Gauge
  • Narrow 1 3/4 inches x 4 1/2 inches x 20 Guage
  • Double Gang 4 1/2 inches x 4 1/2 inches x 20 Guage
  • Weight 0.5 lbs.

MODELS

  • 432KLDUR - Single Gang Mount, LOCKDOWN printing, Latching / key reset DPST, U standard dull stainless finish

* Special order finish options available, please call for current lead times.

Also Known As:

SDC-432KLDUR

Finish:

Stainless Steel

Manufacturer:

SDC Security

Model Number:

432KLDUR

Type:

Mushroom

Usage:

Weather Resistant
1 Question asked on SDC 432KLDUR Lockdown Mushroom Button •
Ask a Question
Q Elizabeth Lavie • 06/12/2023, 4:59:09 PM Hi there! Do you have any information about what the doors need to have for this to work?
A 06/14/2023, 11:20:23 AM To use this 432KLDUR button to lockdown a door you will need (at minimal) an Electronic Lock and Power Supply. Appropriate egress devices will also be required based on the Building/Fire codes in your area. For more information on this product and to get started on a complete system Estimate, please give us a call at 1-866-500-5625
