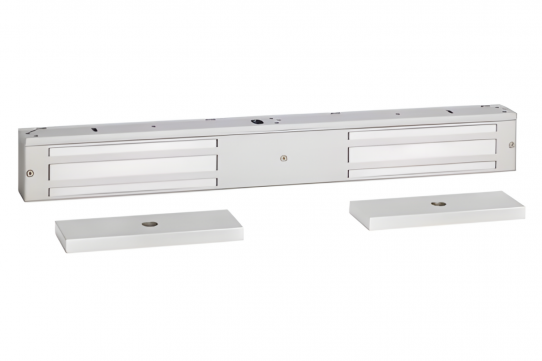

SDC 1572 EMLock, 1200lbs Gr1 Magnetic Double Lock

$697.90 $997.00


SDC 1500 series EMLocks® include a lifetime warranty and are available in 650lbs, 1200lbs, and 1650lbs holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL Listed and ANSI Grade 1 compliant.

More Info +

Specify Finish (V - Aluminum Standard, all other special order 4-weeks):


Product Details

SDC’s patented EMLock® design represents the pinnacle of magnetic lock evolution. The modular EMLock® assembly makes them easy to stock, install, upgrade and maintain.

EmLock EZ Upgrade Kits

Field upgradeable by distributors, installers and maintenance staff. No need to ever remove a lock from the frame to upgrade or exchange internal components.

Upgrade Modules Include:

  • Relock Delay Timer
  • Magnetic Bond Sensor
  • Door Status Sensors
  • Anti-Tamper Switch
  • Holding Force Upgrade
  • Energy Saver Upgrade


  • 1572V (standard) Double EmLock - 1,200 lbs, UL Listed. V - aluminum finish
  • Specifications

    • Input Voltage: Dual voltage Sensing 12/24 VDC
      • 250mA @ 24VDC
      • 500mA @ 12VDC
    • Size: 22 inches L x 2-3/4 inches H x 1-9/16 inches D (558.8 x 69.9 x 39.7 mm)


    • T - Adjustable Timer: Built-in field adj. 0-30 sec. re-lock delay.
    • D - Door Position Sensor: Indicates door open and door closed. SPDT Dry, 250 mA @ 30VDC.
    • B - Magnetic Bond Sensor: Indicates locked and unlocked, low holding power, tampering and obstruction between armature and magnetic core. SPDT Dry, 250 mA @ 30VDC.
    • L - Bi-color Status LED Indicator: Field selectable Red, Green, or Amber (requires additional wiring)
      • Indicates lock energized when wired to lock input.
      • Indicates de-energized/unlocked or “Enter/Go” when wired to optional timer module.
      • Indicates energized and de-energized or “Enter/Go” when wired to access control auxiliary output.
      • Indicates door is closed and locked and door is unlocked when wired to BA.
    • A - Anti-tamper Sensor: Indicates access cover removal. SPDT Dry, 1amp @ 30VDC.

    Made in the USA

    Also Known As
    SZ-1572V, SDC-1572V
