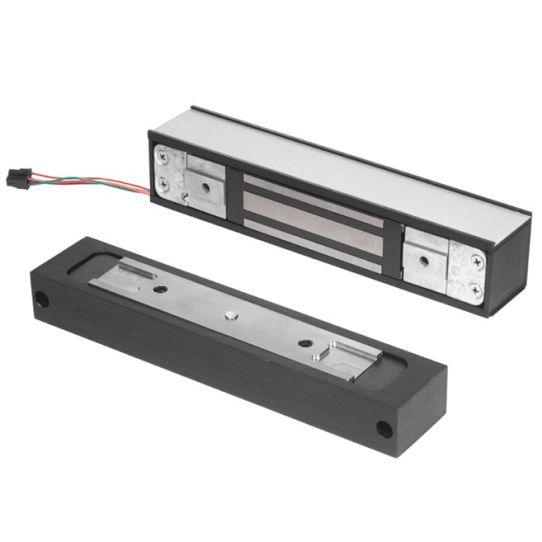

Schlage GF3000SM Surface Mounted Shear Lock, 3000lbs
$1,798.61
$2,167.00
Overview
Surface mounted shear lock intended for use on out-swinging doors.
Surface mounted magnet mounts under header and surface mounted armature assembly mounts into door just under magnet
assembly. Air gap adjustment is from top of door
Product Details
GF3000SM Surface Mounted shear locks’ patented design provides powerful holding force in low profile models for outswinging doors. A microprocessor-based control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources.
The lightweight, black anodized housing can be quickly mounted without need of brackets and is finished off with a satin aluminum decorative plate for a clean look.
Standard Features
- 3000lbs Holding Force
- Automated voltage selection 12/24VDC
- Requires filtered, regulated power supply
- Built-in automatic relock switch
- Adjustable time delay on relock, 2-30 seconds
- Low Temperature Operation
- Microprocessor controlled
- Housing is black anodized with BHMA 628 satin aluninum decorative plate
- ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications
- Limited lifetime warranty on magnetic coil assembly
Model
- GF3000SM - Surface Mounted Shear Lock for Outswinging doors
- GF3000SM DSM MBS - Surface Mounted Shear Lock for Outswinging doors, with Door Status Monitor & Magnetic Bond Sensor
Mechanical Specifications
- Holding Force: 3000lbs
- Lock: 9 13/16 inch L x 1 1/4 inch H x 1-1/2 inch D
- Armature Housing: 8 3/8 inch L x 1 3/8 inch H x 1/2 inch D
Eletrical Specifications
- Voltage: 12/24VDC
- Current: .90amp @ 12VDC; .45amp @ 24VDC
