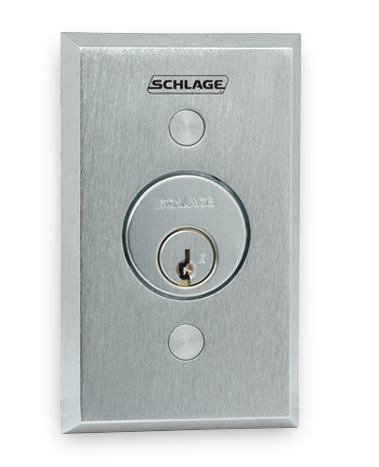

Schlage, 650 Series Keyswitches
Processing...

20% Off MSRP

Schlage, 650 Series Keyswitches

$192.00 $240.00

Overview

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counterclockwise key turn direction as well as momentary or maintained action in seconds

*mortise key cylinder sold separate, see options below

More Info +


Select Model:
Key Cylinder (mortise cylinder NOT included):
Options

Qty

Product Details

Product Overview

Schlage 650 Series keyswitches utilize an innovative magnetic spring design which allows installers to configure both clockwise and counterclockwise key turn direction as well as momentary or maintained action in seconds

Features

  • Easy to install and maintain
  • Patented magnetic spring design allows installers to configure momentary to maintained action in seconds
  • Standard 630 satin stainless steel plate

Model

  • 653-04 - SPDT maintained single direction
  • 653-05 - SPDT momentary single direction
  • 653-14 - DPDT maintained single direction
  • 653-15 - DPDT momentary single direction
  • 653-0404 - (2) SPDT maintained bi-direction
  • 653-0405 - SPDT maintained x SPDT momentary
  • 653-0505 - (2) SPDT momentary bi-direction

Specification

  • 5amp @ 30 VDC

Options

  • Mortise Cylinder (includes 2 keys)
  • L2 - Two LEDs (red/green), dual voltage
Also Known As
LOC10065304, Schlage 653-04
Finish
Stainless Steel
Manufacturer
Schlage
Model Number
653
UPC Code
043156871544
