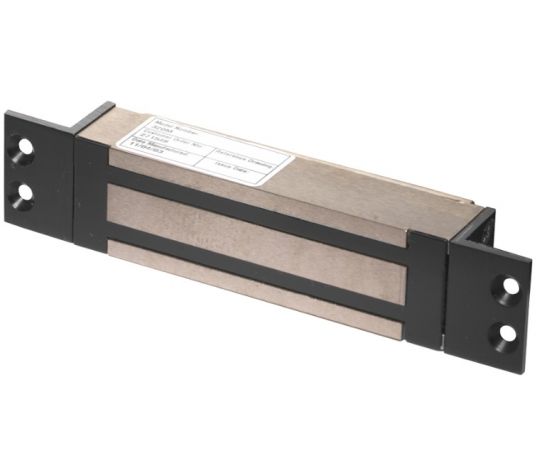

Schlage, 320M Mortise Mount Sliding Door Mini Maglock

The 320M MiniLine is a UL listed, for mortise mounted electromagnetic lock designed for use on sliding doors.

It interfaces with electronic access control systems, automatic door operators, and fire or hazard sensing systems to provide egress upon detectable emergency. With a fail-safe design, it offers an excellent solution for both security and life safety requirements when connected to the fire alarm circuit.

The 320M has been installed in thousands of locations worldwide including airports, hospitals, nursing homes, schools, universities, libraries, museums, retail and office buildings, laboratories, and government buildings.

Standard Features

• 550lbs Holding Force
• Fail-Safe operation
• Field Selectable, 12 or 24 VDC
• Includes mounting tabs and armature mounting block
• Door Status Monitor (DSM)
• Magnetic Bond Sensor with LED indicator (MBS)
• Adjustable time delay of 0-30 seconds (ATD)

Mechanical Specifications

• Holding Force: 550lb
• Lock: 7 inches L x 1-3/8 inches H x 1-7/8 inches D
• strong>Armature: 4-1/4 inches L x 1-1/2 inches H x 5/8 inches D
• Weight: 6 lbs

Eletrical Specifications

• Voltage: 12/24VDC selectable
• Current: .23A @ 12VDC; .45A @ 24VDC

Models

• 320M 628 - Mortise Mount Mini Magetic lock, Satin Aluminum Clear Anodized finish

Certifications

• UL 10C listed for positive pressure fire tests of door assemblies: 3 hour
• cUL certified
• CSFM
