Rosslare Security, PS-C25TB-U Access Control Power Supply with Secure Relay

General Description

The PS-C25TB-U is the ultimate solution to convert Rosslare's convertible series (AYC) readers into a secure standalone controller unit.

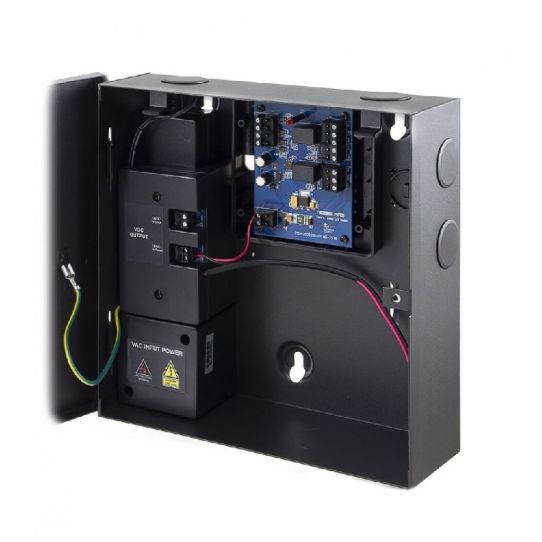

The PS-C25TB-U is a Power Management Enclosure for use with Rosslare's Secure Stand-Alone Controller Unit. It is a combination of a Multipurpose Power Management Enclosure and the MD-25TB Secure Relay I/O Module preassembled for installation convenience.

The secure relay provides power to the Controller Unit. The Controller Unit communicates with the secure module through a Rosslare proprietary protocol, providing instructions to activate the lock/auxiliary relays

Main Features

• Relay for secure door operation: Requires use of Rosslare AYC series readers (sold separately)
• Lock Relay: Form C SPDT, 5A max
• On-board power for electronic locks: 12VDC, 1.5A
• REX Input: NO contact
• LED Power Status Indicators

Specifications

• Input Voltage: 120VAC (via plug-in power cord)
• Output Voltage: 12VDC
• Operating Environment: Indoor
• Operating Temperature Range: -10° C to 50° C (14° F to 122° F)
• Dimensions: 8.98 inches H x 8.82 inches W x 3.31 inches D (228mm H x 224mm W x 84mm D)
