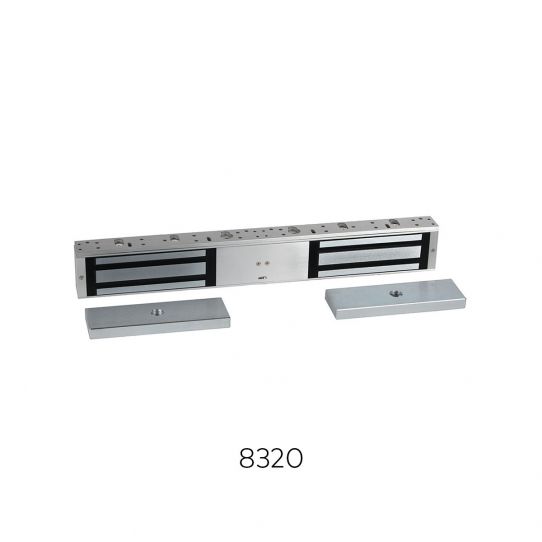

RCI 8320 Double MultiMag 1200lbs Maglock

$1,161.00 $1,290.00

These hard-working multi-purpose electromagnetic locks enhance building security and install quickly.

Several standard features make these magnets the "workhorse" of the industry. The adjustable mounting bracket has been enhanced with keyhole mounting to support the magnet's weight during initial installation, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring.

These models feature a built-in, adjustable time delay with instant unlock and delayed relock (up to 110 seconds), which can be controlled by any standard switching device.

Applications:

Interior or perimeter

  • Pairs of outswinging doors without mullion
  • Pairs of inswinging doors without mullion (use with Z brackets)
  • Government Facilities
  • Office Complexes
  • Warehouses
  • Retail
  • Commercial
  • Industrial
  • Health Care
Read More about RCI 8320 Double MultiMag 1200lbs Maglock
Inswing Mounting Brackets (required for inswing door applications):

Specifications

  • Holding force: up to 1,200 lbf (each electromagnet)
  • Voltage: 12 or 24 VDC, auto-sensing
  • Current draw: 500 mA maximum at 12 VDC
  • Operation: fail-safe
  • Time delay: built-in, instant release with adjustable relock, programmable from 0 to 110 seconds
  • Protection: MOV surge protection; no residual magnetism
  • Armature: hardened steel armature nut
  • Warranty: lifetime limited
  • Mounting: encapsulated 4-bolt "Drop-Stop" mounting, self-drilling tek fasteners
  • Finishes: brushed anodized aluminum; brushed anodized dark bronze

Features

  • Larger (right angled) LED size for better visibility (SCS versions only)
  • Low energy consumption
  • Adjustable keyhole mounting
  • Convenient plug-in wiring terminals
  • Easy access wiring cavity

OPTIONS

  • DSS - Door Status Sensor (Retrofit Kits Available)
  • SCS - Security Condition Sensor with LED
  • DSS/SCS - Door Status Sensor/Security Condition Sensor Combination with LED

Accessories Sheet - (Items listed are available by special request please call 866-500-5625 or use our email contact form)

Also Known As:

RUT100832028, 8320228, RU-8320D28, RCI-832028

Finish:

(selectable)

Manufacturer:

RCI

Manufacturer Warranty:

Lifetime

Model Number:

8320

Power Requirements:

24VDC/12VDC

Status Monitor:

Optional

UPC Code:

785943017741
1 Question asked on RCI 8320 Double MultiMag 1200lbs Maglock •
Ask a Question
Q Darren Scott • 07/19/2021, 9:57:25 AM On your 8320 Double Maglock, is there a way to be able to connect the wiring to both control boards from a single entry?
A 07/23/2021, 12:53:28 PM Yes, typically both magnetic lock boards would be wired together in parallel so both magnets lock/unlock at the same time. For more information on this please give us a call at 1-866-500-5625
