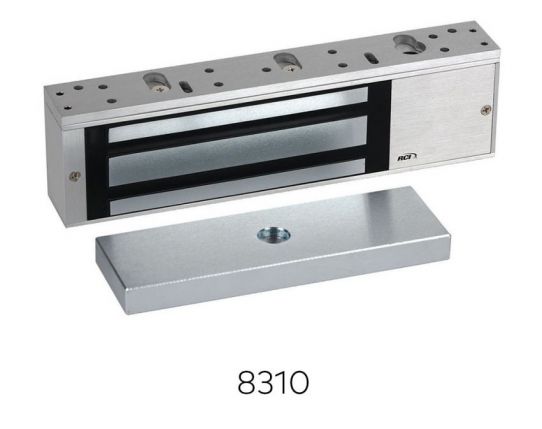

RCI 8310 MultiMag 1200lbs Holding Force Maglock

$583.20 $648.00

These hard-working multi-purpose electromagnetic locks enhance building security and install quickly.

Several standard features make these magnets the workhorse of the industry. The adjustable mounting bracket has been enhanced with keyhole mounting to support the magnet's weight during initial installation, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring.

These models feature a built-in, adjustable time delay with instant unlock and de-layed relock (up to 110 seconds), which can be controlled by any standard switching device.

Applications:

  • Interior or Perimeter
  • Single outswinging doors
  • Single inswinging doors (use with Z bracket)
  • Government Facilities
  • Office Complexes
  • Warehouses
  • Retail
  • Commercial
  • Industrial
  • Health Care
Read More
Add Top Jam bracket for inward swinging doors?:

Standard Features

  • Larger LED size for better visibility (SCS versions only)
  • Built-in time delay (instant release with adjustable relock, programmable from 0-110 seconds)
  • Field selectable voltage - 12/24VDC
  • MOV surge protection
  • No residual magnetism
  • Low energy consumption
  • Hardened steel armature nut

Finish

  • Brushed Anodized Aluminum
  • Brushed Adonized Dark Bronze finish

PLUS! Standard MultiMag features included

  • Adjustable keyhole mounting
  • Convenient plug-in wiring terminals
  • Easy access wiring cavity
  • Encapsulated 4-bolt Drop-Stop mounting
  • Self-drilling tek™ fasteners

OPTIONS

  • DSS - Door Status Sensor Retrofit Kits Available
  • SCS - Security Condition Sensor with LED
  • DSS/SCS - Door Status Sensor/Security Condition Sensor Combination with LED

Accessories Sheet - (Items listed are available by special request please call 866-500-5625 or use our email contact form)

Also Known As:

RUT100831028, 8310X28, RU-831028, RCI-831028

Finish:

(selectable)

Manufacturer:

RCI

Manufacturer Warranty:

Lifetime

Model Number:

8310

Power Requirements:

24VDC/12VDC

Status Monitor:

Optional

UPC Code:

785943017697
1 Question asked on RCI 8310 MultiMag 1200lbs Holding Force Maglock •
Ask a Question
Q Brian Whitley • 10/01/2021, 2:30:22 PM Is there a double pole double throw door sensor available for this type of maglock?
A 10/04/2021, 5:36:37 PM The 8310 can be purchased with a Door Status Sensor, Bond Status sensor or with both. These sensors are SPDT (single pole double throw) only. For additional functionality out of these sensors you can pair it with an additional relay part# RBSN. Give us a call and we can discuss your project in more detail, 1-866-500-5625

Related Products

sale
SDC 923 Narrow Keypad 500 Users (Prox Reader)
SDC 923 Narrow Keypad 500 Users (Prox Reader)
Select Model:
Starting at $179.90
$257.00
sale

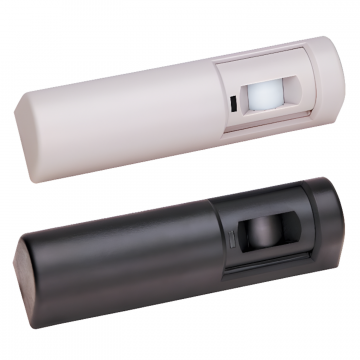

SDC MD-31D Egress Sensor, failsafe, request to exit
