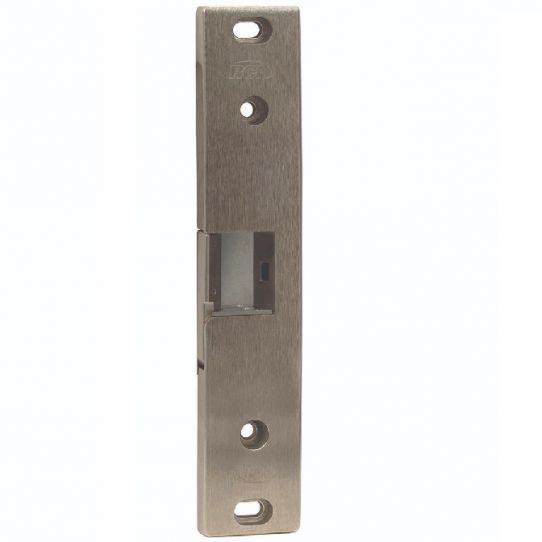

RCI, 0163 Surface Mount Electric Strike 1/2 inch Rim

Product Overview

This solenoid rim strike is a surface-mounted electric strike designed to work with Pullman style rim exit device latches. Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.

Features

• Completely surface-mounted with no frame cutting required
• High-grade stainless steel
• Accommodates 1/2 inch (13mm) latch projection
• Horizontal adjustment ensures proper latch positioning to compensate for door misalignment up to 1/4 inch (6.4mm)
• Plug-in wire connectors
• Lockdown holes for secure mount
• Non-handed
• Endurance: 500,000 Cycles
• Fail-Secure
• 5 Year Limited Warranty

Specifications

• Model: 0163, surface mount, for Pullman latch rim exit devices
• Latch Projection: 1/2 inch (13 mm)
• Voltage: Field selectable 12/24 VDC and 12 to 24 VAC
• Current: 270 mA max at 12 VDC
• Fail Mode: Fail-secure
• Static Strength: 1,500 lbf
• Dynamic Strength: 70 ft-lb
• Endurance: 500,000 cycles
• Adjustment: Horizontal, up to 1/4 inch (6.4 mm) door misalignment
• Dimensions: 1-3/4 inch W x 9 inch H x 1/2 inch D (45 mm x 229 mm x 13 mm)
• Finish: Brushed stainless steel (32D)
• Option: 0162DDH (double door housing assembly, required to install 0162/0163 on double doors without a center mullion)
• Listings: UL 294 (access control unit accessory); UL 1034 burglary-resistant
• Warranty: 5-year limited
