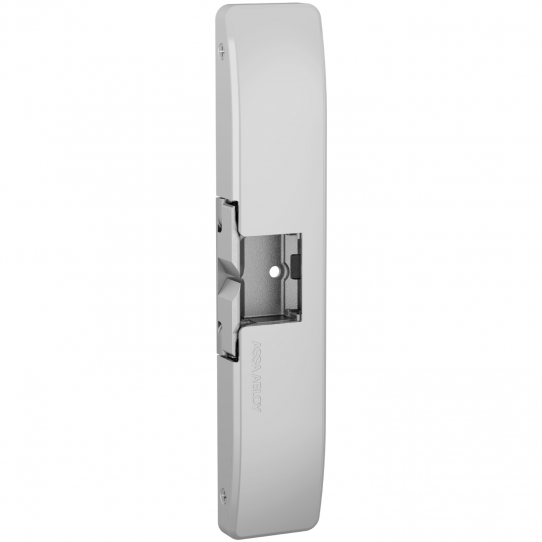

HES 9600 Surface Mounted Strike for Rim Exit

HES 9600 Electric Strike for Rim Exit Devices

Product Overview

The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4 inch throw latch. All components are completely encased within its 3/4 inch thick stainless steel housing, so no cutting on the frame is required for installation.

Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

*Recommended for doors and gates with rim mounted egress bars.

Specifications

• Latch: accommodates up to a 3/4 in Pullman latch (3/4 in throw)
• Housing: 3/4 in thick stainless steel, completely surface mounted
• Finish: 630 satin stainless steel
• Voltage: 12 or 24 VDC (field selectable)
• Current draw, continuous duty: 500 mA at 12 VDC; 250 mA at 24 VDC
• Operation: field selectable fail safe or fail secure
• Static strength: 2,000 lbs
• Dynamic strength: 120 ft-lbs
• Endurance: 1,000,000 cycles
• Frame application: metal or wood (wood screws not included)
• Handing: non-handed
• Rating: outdoor rated, tamper resistant
• Warranty: five year limited
• Certifications: ANSI 250.13-2003 Severe Windstorm; ASTM E330; ANSI/BHMA A156.31 Grade 1; ANSI/SDI 250.13; Florida Building Code FL# 14307; UL 294; UL 305; UL 1034 Burglary-Resistant (suitable for outdoor use); RoHS

Features

• Horizontal adjustment
• Internally mounted solenoid

Models

• 9600-630: Surface-Mounted Strike, 3/4 thick. 630 - Satin Stainless Steel finish
• 9600-630-LBM: Surface-Mounted Strike, 3/4 thick. 630 - Satin Stainless Steel finish. with LBM Latchbolt Monitor
• 9600-630-LBSM: Surface-Mounted Strike, 3/4 thick. 630 - Satin Stainless Steel finish. with LBSM Latchbolt Strike Monitor
