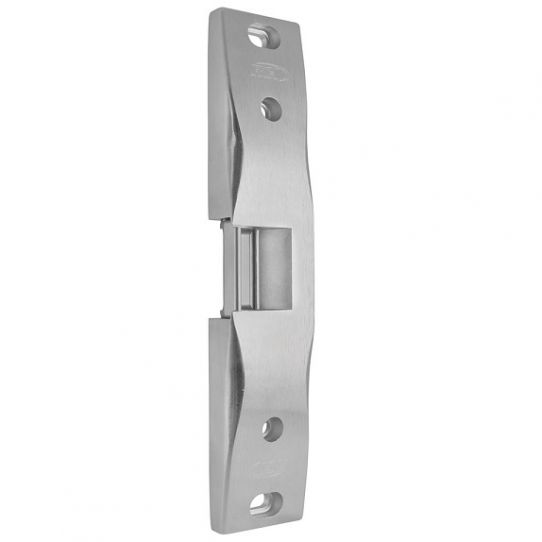

RCI, 0162 Surface Mount Electric Strike 3/4 inch Rim

Product Overview

The 0162 electric strike accommodates 0.50 inch to 0.75 inch latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.

Features

• Completely surface-mounted with no frame cutting required
• Accommodates 1/2 inch to 3/4 inch (13mm to 19mm) latch projection
• Stainless steel ensures superior strength and creates a sleek aesthetic design
• Horizontal adjustment ensures proper latch positioning to compensate for door misalignment up to 1/4 inch (6.4mm)
• Conventional keeper design (one moving part)- promotes even load distribution
• Plug-in wire connectors
• Lockdown holes for secure mount
• Installation tool included (HEX key)
• Non-handed (featuring horizontal solenoid design)
• 1/16 inch (1.5mm) mounting spacer for additional latch engagement included
• Endurance: 500,000 Cycles
• Fail-Secure
• 5 Year Limited Warranty

Technical Data

• Brushed Stainless Steel (32D) finish
• 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
• 1,500lbf Static 70ft-lb Dynamic
• Dimensions: 1-3/4 inches W x 9 inches H x 3/4 inch D (45mm x 229mm x 20mm)

Model

• 0162: Surface mount electric strike, 3/4 inch

Options

• 0162MSK: Additonal Mounting Spacer, 1/16 inch
• 0162DDH: Double Door Housing Assembly, (required to install 0162 on double doors without a center mullion)

Listings

• UL 294 Listed for Access Control Unit Accessory
• UL 1034 burglary-resistant Listed
• California State Fire Marshal Listed (CSFM: 3776-2127:0101)2
• Patent #: US 7,722,097
• Patent #: Cdn 2,597,916
