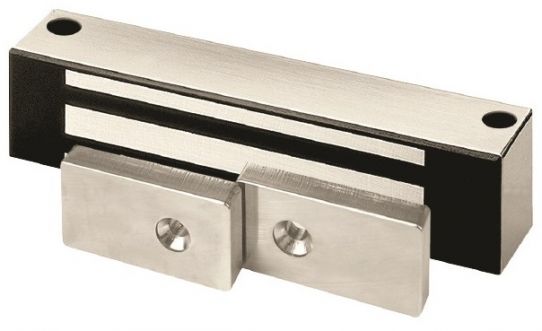

M32-SS Split Strike Cabinet Lock by Securitron, 600lbs

M32-SS Split Strike Cabinet Lock, 600lbs

300 lbs. holding force per strike (600 lbs. total). Typical applications include: retail display cases, chemical and pharmaceutical storage cabinets, inventory cages and other cabinets that utilize outswinging doors with a common center latching point. Indoor or outdoor operation. For 5/8 inch to 7/8 inch thick cabinet doors.

Product Features

• Patented instant release circuit - no residual magnetism
• Surface mounts easily with a minimum of tools
• Fully sealed electronics - tamper proof and weatherproof
• Mounted using steel machine screws into blind finishing nuts
• Architectural brushed stainless steel finish (US32D/630)
• All ferrous metal surfaces plated to MIL specification
• Hardware accessories available to configure any opening
• Ten feet [3.05m] of jacketed, stranded conductor
• Optional BondSTAT magnetic bond sensor
• UL Listed
• MagnaCare® lifetime replacement, no fault warranty

Specification Data

• Holding Force: 300 lbs. [136 kg] per strike
• Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDC
• Operating Temperature: -40° F to +140° F [-40° C to +60° C]
• Shipping Weight: 6 lbs.

Models

• M32-SS (Magnalock Model M32, Split Strike)
• M32B-SS (Model 32, Mag Bond Sensor, Split Strike)

Certifications and Listings

• Underwriter's Laboratories (US and Canada): Files SA6635, BP7041 and R13976
• UL 10B and UL 10C, UL 294
• California State Fire Marshal: 3774-0923:101
• City of New York MEA: 251-95E and 254-95E
• CE: EN 50081-1 (92) and EN 61000-6-2 (99)

Warranty

• MagnaCare® lifetime replacement, no fault warranty

Specifications

• Holding Force: 300 lbs (136 kg) per strike (600 lbs total)
• Current Draw: 300 mA at 12 VDC; 150 mA at 24 VDC
• Operating Temperature: -40°F to +140°F (-40°C to +60°C)
• Cabinet Door Thickness: 5/8 inch to 7/8 inch
• Finish: Brushed stainless steel (US32D/630)
• Lead: 10 ft (3.05 m) jacketed, stranded conductor
• Models: M32-SS; M32B-SS (with BondSTAT magnetic bond sensor)
• Use: Indoor or outdoor
• Shipping Weight: 6 lbs
• Listings: UL 10B, UL 10C, UL 294 (files SA6635, BP7041, R13976); CSFM 3774-0923:101; NYC MEA 251-95E and 254-95E; CE (EN 50081-1 (92), EN 61000-6-2 (99))
• Warranty: MagnaCare lifetime replacement, no fault
