Building and Fire Life Safety Code Compliance

Selectric® locksets ensure that the door stays latched even when unlocked, maintaining fire door integrity. SELECTRICTM locksets comply with all national building and fire life safety code requirements for use on fire rated doors, including high rise stairwell and elevator lobby doors where the use of electric strikes and magnetic locks is prohibited.

Security with Superior Aesthetics

Available in field selectable failsafe and failsecure modes, functions and operating voltages, Selectric® electrified locksets provide a superior appearance compared to exposed and vulnerable electric strikes and magnetic locks, while eliminating the need for requestto- exit devices.

Features

Building and Fire Life Safety Code Compliance
True full monitoring and REX capability
Vandal resistance
Lock brand choice and retrofit
Field operation flexibility
Reduced stocking requirements
Increased function availability

Models

Z7830Q - Locked both sides, failsafe. Field reversible to failsecure mode.
Z7850Q - Locked outside only, failsafe. Field reversible to failsecure mode.
Z7832Q - Locked both sides, failsecure. Field reversible to failsafe mode.
Z7852Q - Locked outside only, failsecure. Field reversible to failsafe mode.
Z7835Q - Locked outside and/or inside. Outside failsecure, inside failsafe mode.

*Q indicates 626 Dull Chrome finish (standard)

Specifications

Dual Voltage: 600/300 mA @ 12/24VDC
Mode: Field Reversible, Failsafe/Failsecure
Door Thickness: 1-3/4 inch standard
Door Preparation: ANSI A156.13
Latch Bolt: 3/4 inch anti-friction bolt with auxiliary deadlatch
Backset: 2-3/4 inch
Strike: 4-7/8 inch (standard)
Key Override: 6 PIN, 1-1/4 inch Mortise cylinder *sold separately

Product Use

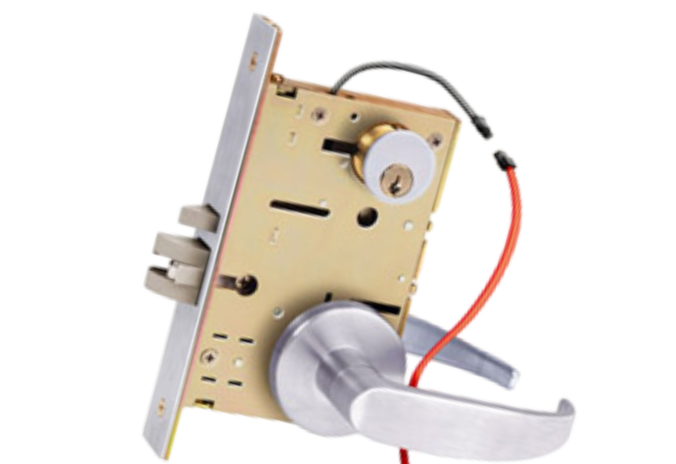

Selectric® Electrified Mortise Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.
