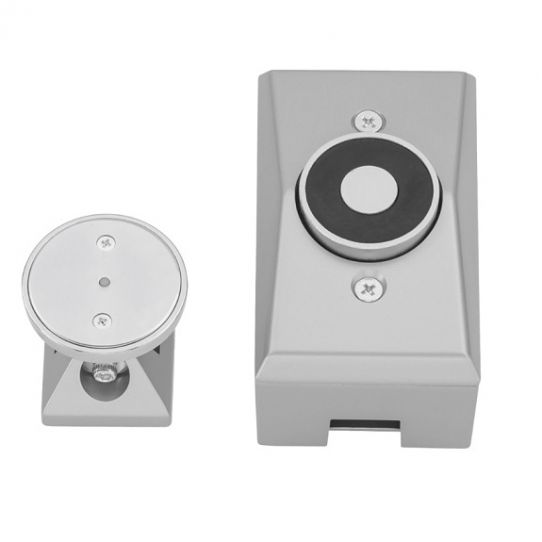

LCN, SEM7830 689 Magnetic Door Holder, Surface Wall Mount, Heavy Duty

Product Overview

The Sentronic SEM 7800 Series are electrically controlled door-holding magnets.

Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door.

Typical Applications include, schools, hospitals, hotels, movie theaters, offices, airports etc.

Model

• SEM7830 689 - Surface Wall Mount, Low Profile Armature, 12v 24V 120V Tri Voltage, Aluminum Painted finish

Specifications

• Materials: Die cast housing

• Voltage: 12 VDC, 24 VAC/DC, 120 VAC Tri Voltage
• .030A @ 12VDC
• .020A @ 24VAC/DC
• .020A @ 120VAC
• Holding Force: 35lbs @ nominal input voltage
• Mount: Surface Wall Mount
• Total Projection: 4-1/8 inches (105mm)
• Fasteners: Wood and Machine Screws (included)

Certifications

• Grade 1 - ANSI A156.15

• UL 10C for metal smoke barrier or labeled door
• Life Saftey Code
• NFPA 101
• 100 Hour Salt Spray
• Meets BAA - Buy American Act

Product Operation

Electromagnets are typically used with fire alarm systems.

Doors are held open in the non-alarm condition. When the fire alarm panel enters the alarm condition, power to the electromagnets is removed, the doors close under door closer control, and function as a manual door.

When the fire alarm panel returns to the non-alarm condition, power is reapplied to the electromagnets and the doors can be held open again.
