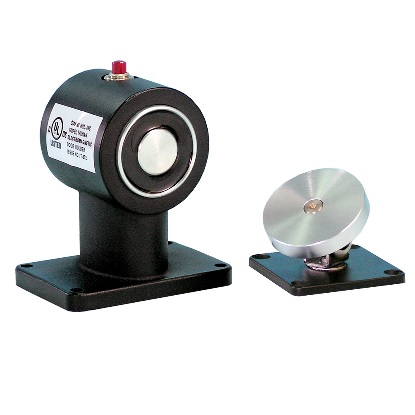

ROFU, 8920 Series Floor Mounted Magnetic Door Holder w/Reset Button

PRODUCT OVERVIEW

Electromagnetic door holders are designed for use with self-closing devices for any remote door release applications. They usually hold doors open in any areas where access is essential, such as schools, hospitals, nursing homes and public buildings. When the door holders are de-energized by the fire alarm system, the door is released to a closed position, providing a barrier for fire and smoke.

When power is restored, the magnets will re-energize, enabling the door to be held open again by the holders.

STANDARD FEATURES

• Fail-safe: releases instantly when power is disconnected
• No residual magnetism
• Manual release button initiates closing motion
• Swivel armature plate adjusts to door alignment changes
• Black power coated finish
• UL listed

TECHNICAL SPECIFICATIONS

• Holding Force: 80 lbs
• Voltage: Available in 12 VDC/VAC or 24 VDC/VAC
• Current: 120 mA/12 VDC, 60 mA/24 VDC

Model

• 8920-12-UL - Floor Mount Magnetic Door Holder with Button Reset, 12 VDC/AC
• 8920-24-UL - Floor Mount Magnetic Door Holder with Button Reset, 24 VDC/AC

Specifications

• Model: 8920-12-UL, 8920-24-UL
• Also known as: 8920-12 UL, 8920-24 UL
• Manufacturer: Rofu
• Type: Floor mounted magnetic door holder with reset button
• Holding force: 80 lb
• Voltage: 12 VDC/VAC (8920-12-UL) or 24 VDC/VAC (8920-24-UL)
• Current: 120 mA at 12 VDC; 60 mA at 24 VDC
• Operation: Fail safe, releases when power is disconnected; no residual magnetism; manual release button; swivel armature plate
• Listing: UL listed
• Finish: Black powder coated
• Mounting: Floor mount
• Usage: Interior use only
• Warranty: 3 Year
