HES, 5000C Complete Pac for Latchbolt Locks

Product Overview

The 5000C has a compact, low profile design for easy installation.

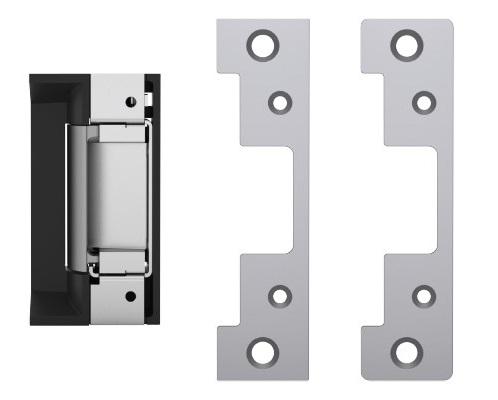

Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5000C includes a 5000 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

The 5000C-630 is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8 inch throw.

The 5000C-630 features a satin stainless steel finish and comes equipped with a 501 and 501A faceplate.

Features

• Fail-Secure - Field reversible for failsafe operation
• Grade 1
• Endurance 1 Million Cycles
• Outdoor Rated

Specification

• Dual Voltage 12/24, VDC/VAC
• 240 mA at 12VDC
• 120 mA at 24VDC
• PoE friendly
• RoHS Compliant
• UL 1034 burglary resistant listed
• UL 294 Listed

Model

• 5000C-630: Complete Electric Strike; Includes the 501 and 501A faceplates. 630 Satin Stainless Steel faceplates
• 5000C-630-LBM: Complete Electric Strike w/ Latch Bolt Monitor; Includes the 501 and 501A faceplates. 630 Satin Stainless Steel faceplates

5000C Includes

• (1) 5000 Electric Strike body
• (1) 501-630 faceplate
• (1) 501A-630 faceplate
• (1) 12 & 24 Volt Pigtails
• (1) Trim Enhancer, with screws

Dimensions

• Strike body depth 1-11/16 inches

Specifications

• Model: 5000C-630
• Also known as: 5000C, 5000C 630
• Manufacturer: HES
• Type: Complete Pac electric strike for latchbolt locks (cylindrical locksets)
• Includes: 5000 strike body, 501-630 and 501A-630 faceplates, 12 and 24 volt pigtails, trim enhancer with screws
• Variant: 5000C-630-LBM adds latch bolt monitor (SPDT)
• Voltage: 12/24 VDC/VAC dual voltage
• Current draw: 240 mA at 12 VDC; 120 mA at 24 VDC
• Fail state: Field selectable fail safe / fail secure
• Latchbolt throw: Up to 5/8 inch
• Strike body depth: 1-11/16 inches
• Strike body height: 4-7/8 inches
• Grade: Grade 1; 1 million cycles
• Dynamic strength: 70 ft-lbs
• Tamper resistant: Yes
• Finish: 630 satin stainless steel
• Listings: UL 1034 burglary resistant; UL 294; ANSI/BHMA A156.31 Grade 1; ASTM E330; ANSI/SDI 250.13 windstorm; RoHS compliant
• Duty rating: Continuous (DC) / intermittent (AC)
• Frame material: Hollow metal, wood
• Installation: Mortise
• Environment: Outdoor suitable (UL 1034 burglary-resistant listed)
• Fire rating: Not fire rated
• Pair of doors: Can be installed in the inactive leaf if the door is at least 1-3/4 inches thick and not fire rated
• Monitoring: Latchbolt monitor (LBM) option, factory configured
• Warranty: 5 Year (SecuriCare no fault)
