HES 4500C Series Electric Strike, Fire Rated, Grade 1
$690.62
$863.28
4500C Series Electric Strike
Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Low Profile, Fire Rated, Satin Stainless Steel. The 4500C series electric strike is designed for installation in 2 inch UL 10C fire rated frames with 1/2 inch drywall penetration. The 4500C features a low profile 1-3/8 inch depth, heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware.
Product Features
- Stainless steel construction
- Tamper resistant
- Field selectable fail safe/fail secure

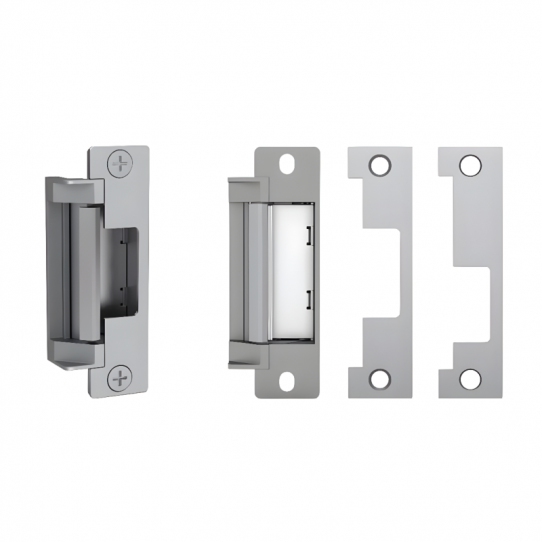

- Two faceplates included
- (1) faceplate for use with cylindrical locksets
- (1) faceplate for use with mortise locksets
- Non-handed
- Internally mounted solenoid
- Plug-in connector
- Trim enhancer
- Full keeper shims for horizontal adjustment
- Dual voltage 12 or 24 VAC/VDC
Specifications
- Voltage: 12/24 VDC or VAC (dual)
- Current: 0.24 A at 12 V; 0.12 A at 24 V
- Fail Mode: Field selectable fail-safe / fail-secure
- Latchbolt: Accommodates up to 3/4 inch
- Strike Body Depth: 1-3/8 inch
- Static Strength: 1,500 lb
- Dynamic Strength: 100 ft-lb
- Endurance: 1,000,000 cycles
- Frames: Metal or wood; designed for 2 inch UL 10C fire rated frames with 1/2 inch drywall penetration; cutting of jamb required
- Faceplates: Two included (cylindrical locksets; mortise locksets)
- Monitoring Options: Latchbolt monitor (SPDT); latchbolt strike monitor (SPDT)
- Listings: ANSI/BHMA A156.31 Grade 1; UL 294; UL 1034; UL 10C 3-hour single door (fail secure only); ASTM E152; NFPA 252; CAL FIRE 3776-1654:0100
- Warranty: 5-year no-fault
- Finish: Satin stainless steel
