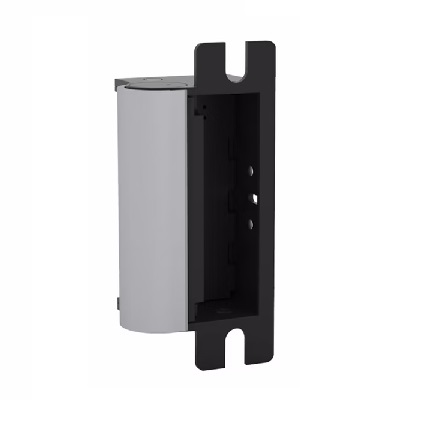

HES 1006 Series Fire Rated Grade 1 Strike, Stainless

$560.00 $700.00

Overview

The strongest, most versatile electric strike available

The 1006 series is the strongest and most versatile electric strike available. It meets or exceeds every standard developed for electric strikes. With 27 faceplate options, the 1006 can accommodate virtually every type of lockset on the market.

The 1006 features a sleek keeper and 100% stainless steel cast case. Tested to exceed 3,000 lbs. of static strength, 350 ft. lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

This listing is for 630 Dull stainless finish if another finish is required please call to order.

More Info +


Face Plate Options:
Fail Safe or Fail Secure:
Add Monitor?:
Options

Qty

Product Details

The strongest, most versatile electric strike available

The HES 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

With 27 faceplate options, the 1006 can accommodate virtually every type of lockset on the market. The 1006 features a sleek keeper and 100% stainless steel cast case. Tested to exceed 3,000 lbs. of static strength, 350 ft. lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Specifications

  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • CAN4-S104(ULC-S104) fire door conformant
  • ANSI A250.13-2003 windstorm listed
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • Florida Building Code approved
  • Patents #6021038 and 6595564
  • UL 294

Frame application

  • Metal
  • Wood

Electrical

  • .45amps @ 12VDC continuous duty
  • .25amps @ 24VDC continuous duty

Standard Features

  • Stainless steel construction
  • Outdoor Rated
  • Tamper resistant
  • Static strength 3070 lbs. (fail secure)
  • Dynamic strength 350 ft-lbs. (fail secure)
  • Endurance 1,000,000 cycles
  • Fail secure (standard)
  • Dual voltage 12 or 24VDC continuous duty
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 1 inch deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer
  • Five year limited warranty

Optional Features

  • Fail Safe
  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
  • 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)

Accessories

  • 1000-102 - Rain guard
  • 1006-103 - Full keeper shims
  • 1000-104 - Lip extension trim adapter
  • 1006-105 - Trim enhancer BLK (goof plate)
  • 1006-109 - Trim adapter
  • 1000-110 - Replacement strike plate
  • 1000-130 - KD filler plate
  • 154-MTK - Metal template kit
  • 2001M - Plug-in bridge rectifier
  • 2004M- ElectroLynx® adapter
  • 2005M3 - SMART Pac III™
  • 2006M - Plug-in buzzer

630 is the standard finish. Please call us to order all others.

  • 630 - Satin stainless
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black
Also Known As
HAN1001006630, 1006630, HE-100610401, HES-1006630
For Use With
Cylindrical Locksets,Mortise Locksets with deadbolt,Mortise Locksets w/o deadbolt
Grade
Grade 1
Manufacturer
Hes
Manufacturer Warranty
5 Year
Model Number
1006
Power Requirements
24VDC/12VDC
Status Monitor
Optional
UPC Code
688961126610
