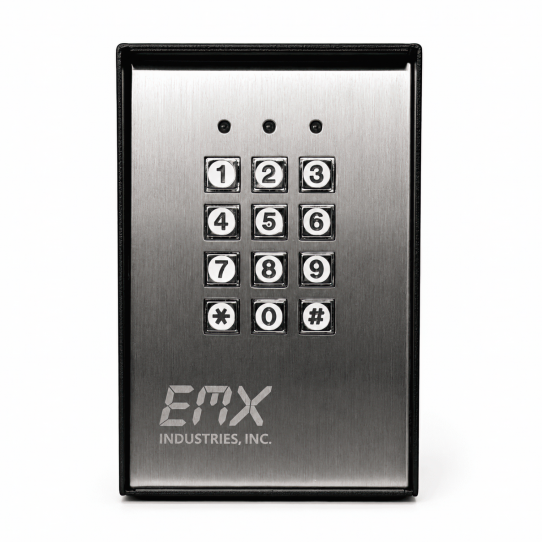

EMX KPX-100 Keypad Secure Entry for Gates and Doors
$243.60
$304.50
EMX KPX 100 Keypad Secure Entry for Gates and Doors
Product Overview
KPX 100 Keypad Secure Entry for Gates and Doors. The KPX 100 is a dual relay output, programmable keypad. With its durable back-lit, all metal key buttons and a rugged metal housing, the KPX 100 is designed to handle high traffic and harsh environments.
The keypad fits on gooseneck mounts or on posts and walls.
Product Benefits
- Vandal resistant
- Weatherproof, IP66
- Large capacity
- Cost effective
Product Features
- Stainless steel face with metal backlit keys
- Anodized and powder coated steel outer housing that is vandal and weather resistant to IP66
- Dual relay outputs
- Over 100 Million 4-8 digit codes
- 12-24V AC/DC operation
- 100 user codes on Relay 1; 10 users relay 2
- Status indicator LEDs
- Universal mounting options for mounting on wall, post or gooseneck stand
Also Known As:
EMX-KPX-100, KPX100, EMX-5400-1Finish:
Stainless SteelFor Use With:
Electronic Gates, Electronic locksManufacturer:
EMX IndustriesModel Number:
KPX-100Operation Keypad:
PIN OnlyPower Requirements:
24V/12V AC/DCUPC Code:
737534375464Usage:
Weather Resistant
1 Question asked on EMX KPX-100 Keypad Secure Entry for Gates and Doors •
Q
Jonna • 07/04/2024, 11:21:00 PM
Is this compatible with Liftmaster gate openers?
A
07/09/2024, 3:01:41 PM
The KPX-100 is a Weather Resistant Outdoor keypad (IP66) that can be used to control most Electronic Locks & Gates. The unit features two Form C (COM, NO, NC) relays that can be wired to either close or open a circuit. As long as your Liftmaster Gate opener control board has an input to accept a "Normally-Open contact closure" you would be able to use this keypad to provide that trigger. For further assistance feel free to contact us by phone at 1-866-500-5625
