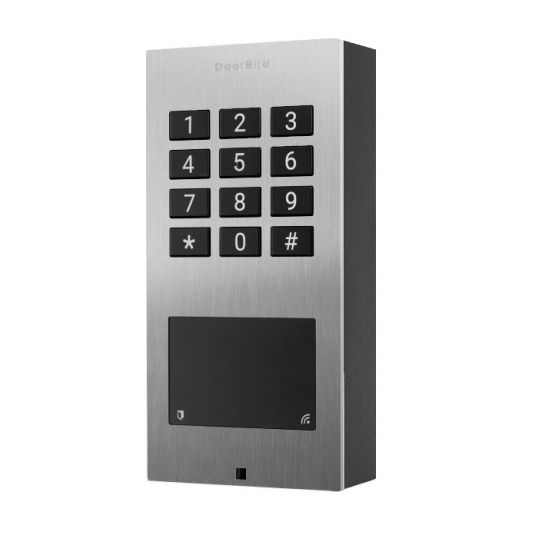

DoorBird, A1121 IP Access Control Device, Surface Mount

Product Overview

The DoorBird A1121 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution.

It enables secure access control in areas where the installation of an IP video door station is not possible or desired, e.g. at back and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. It can also control elevators. The keypad is illuminated, so you can install the device even in an unlit environment.

PIN Codes and RFID Prox cards are configured directly through the DoorBird Phone App!

Standard Features

• PIN codes & RFID prox
• Up to 500 PIN codes manageable
• 50 Event Audit Log record (first-in/first-out)
• Individual events
• Individual schedules
• Ability to trigger relays directly through the phone App
• WiFi 802.11b/g/n 2.4GHz, TCP/IP Ethernet Ready
• 2 x Bistable Dry Relays, individually configurable through the DoorBird App
• PoE-A 802.3af Mode-A, 10/100Base-T
• iOS/Android App available on marketplace

Technical Specifications

• 15VDC Plug-In Transformer (connects to 110-240VAC) or PoE 802.3af Mode-A
• Dimentions: 5.04 inch x 2.44 inch x 1.1 inch (H x W x D)
• Operating Temp: -13° F to +131° F / -25° C to +55° C
• Humidity 10 to 85% RH (non condensing)
• Weatherproof, IP65

Model

• A1121 Surface V2A - Access Control Device, Surface Mount, V2A Stainless Steel finish

Finishes

• V2A - Stainless Steel, brushed

*Remote door unlock feature will require activation of an electronic lock (sold separately). Contact us at 1-866-500-5625 for help setting up a complete system quote.
