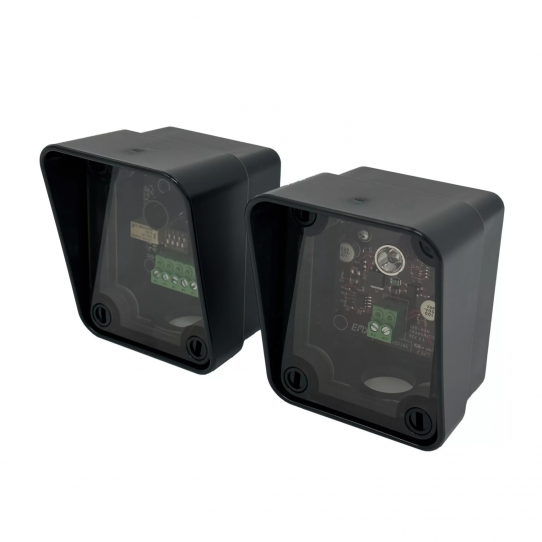

EMX, IRB-MON2 Universal UL325 Thru Beam Photoeye Kit

Product Overview

The IRB-MON2 is a monitored, weather-proof, thru-beam infrared photo eye solution providing entrapment protection for doors, gates and barriers. The IRB-MON2 Safety Photo Beam is UL325 compliant, and housed in an IP65 rated enclosure suitable for indoor and outdoor use.

This universal UL325 thru beam photoeye can be used with a wide variety of monitored operators. Additionally, the IRB-MON2 photoeye is compatible with most non-monitored legacy products. Its robust construction minimizes fogging and false triggering to provide easy alignment.

Standard Features

• Enhanced version of the original IRB-MON
• Advanced features in a compact design
• Integrated sensor hood for element protection
• Removable terminal block for easy wiring
• IRB-MON2 can be used in non-monitored applications using standard NC/NO contacts
• Various UL325 Monitoring Methods for adaptability
• 0.83 inches (21.3 mm) Conduit Hole is large enough for 1/2 inch NPT
• 115 ft. Operating Range
• Detachable Screw Terminals
• Made in the USA

Technical Specifications

• Operating Range: 5 to 115 ft (35 m)
• Power: 6-35 VDC, 12-24 VAC
• Current (NC and 10K Monitoring Methods): 35 mA DC (when aligned and relay activated)
• Current (Pulse Monitoring Methods): 15 mA
• Connections: "Removable" screw terminal for easy wiring
• Supported Monitoring Methods: 10K, 2-wire pulse, Normally CLosed (power cycle)
• Relay Output Configuration: Form C contacts (NO, COM, NC)
• Response Time: <300 mS (for use in NC or 10K monitoring)
• Operating Temperature: -40° F to 170° F (-40° C to 77° C)
• Dimensions (L x W x H): 3.6 inches (91 mm) x 2.9 inches (74 mm) x 2.9 inches (74 mm)
• Conduit Hole Size (bottom of the housing): 0.83 inches (21.3 mm) is large enough for 1/2 inch NPT
