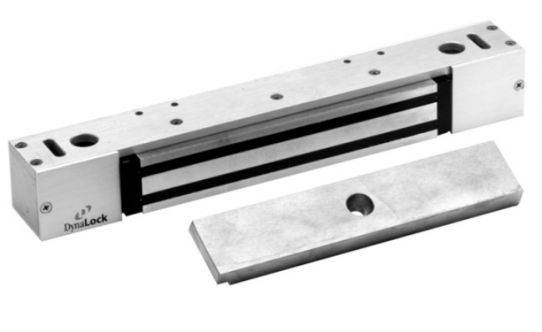

Dynalock, 2268-10 Classic Low Profile Magnetic Lock, 1200lbs

Product Overview

The 2268 Series is a full size 1200 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames.

With a low 2 inch profile, the 2268 is perfect for opening heights of 7 feet or less to facilitate code compliance on designated egress doors.

Retrofits Many Existing Locks

Standard Features

• 1200 lbs of Holding Force
• "Classic" Low-Profile Design
• For Single Outswinging Door
• Retrofits Many Existing Locks
• Armature Plate and install hardware included
• Silent Operation
• Long Lasting Performance
• 12 or 24 VDC (field selectable)
• Lifetime Warranty

Models

• 2268-10 Classic Low Profile Magnetic Lock for Single Outswing Door, 1200 lbs. holding force

Specifications

• Model: 2268-10 Classic Low Profile Magnetic Lock
• Manufacturer: Dynalock
• Holding Force: 1200 lbs
• Voltage: 12 VDC or 24 VDC (field selectable)
• Current Draw: 0.68 A at 12 VDC; 0.35 A at 24 VDC
• Magnet Size: 14 inches L x 2 inches H x 2-3/16 inches D
• Armature Size: 8-5/8 inches L x 1-3/4 inches H x 5/8 inch D
• Weight: 7.5 lbs
• Use: Interior; single outswinging door
• Finish: US28 satin aluminum, clear anodize
• Warranty: Lifetime
