20% Off MSRP

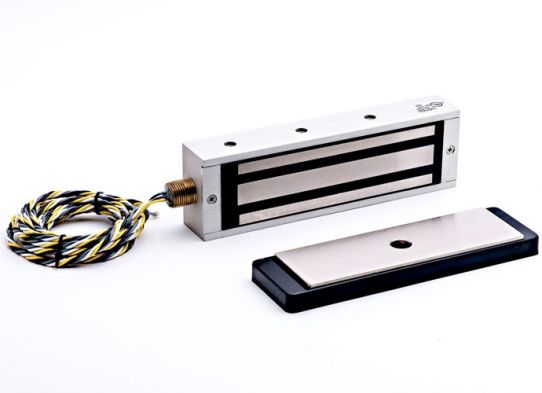

Dynalock, 2013 Single Magnetic Gate Lock, 1200lbs

$487.20 ~~$609.00~~

Overview

Electromagnetic lock, surface mounted for sliding or swinging gates. Face drilled mounting holes, weather resistant, sealed 1/2 inch NPT conduit fitting with six foot long 18AWG leads.

*optional mounting brackets for sliding and swinging gates available (sold separately)

Made in the USA

Product Overview

Electromagnetic lock, surface mounted for sliding or swinging gates. Face drilled mounting holes, weather resistant, sealed 1/2 inch NPT conduit fitting with six foot long 18AWG leads.

Standard Features

1200 lbs of Holding Force
Weather Resistant
Armature Plate and install hardware included
Silent Operation
Long Lasting Performance
12/24 VAC/VDC operation
Built-in spike suppression
Made in the USA
Lifetime Warranty

Technical Specifications

Magnet Size: 1-1/2 inch D x 2-1/2 inch H x 9-1/4 inch L
Current Draw: 374 mA at 12VDC or 210 at 24VDC
Weight: 10 lbs

Models

2013 Single Magnetic Gate Lock, 1200lbs
* optional mounting brackets for sliding and swinging gates available (sold separately)

Finished

US28 Satin Aluminum with clear anodize

Made in the USA

Also Known As

DYN1002013, DY-2013

Finish

Aluminum

Manufacturer

DynaLock

Manufacturer Warranty

Lifetime

Model Number

2013

Power Requirements

24VDC/12VDC

UPC Code

609010277084

Usage

Weather Resistant

Product Catalog PDF

Installation PDF

GLB Installation PDF

1 Question asked on Dynalock, 2013 Single Magnetic Gate Lock, 1200lbs • Ask a Question

Q Delynn Dawn Plott • 10/11/2021, 3:09:56 PM Are there any options for a solar powered electro magnetic lock?

A 10/13/2021, 1:05:43 PM The power draw on this maglock is (374 mA at 12VDC or 210 at 24VDC). While it is possible to run this off solar power you would have to ensure your power system has enough battery capacity to accommodate the constant draw required. For more information regarding these locks, please give us a call at 1-866-500-5625
