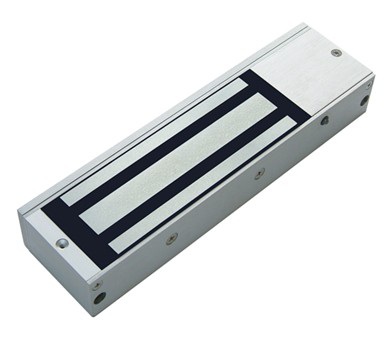

CM1200 Maglock, 1200lbs Magnetic Lock DISCONTINUED
Processing...

CM1200 Maglock, 1200lbs Magnetic Lock DISCONTINUED

$139.00

Overview

**DISCONTINUED ITEM, See CM1200CD as a replacement**

While the smart and shear maglocks are extremely advanced the standard maglocks have not changed very much over the past 20 years. This consistency has allowed manufacturers to focus on such things as lowering power consumption while providing higher holding forces. Includes armature plate and installation hardware.

Recommended for:

  • Exterior doors
  • Main Entranceways
  • Medium to High Security Applications

More Info +


Options

Qty

Product Details

**DISCONTINUED ITEM, See CM1200CD as a replacement**


Product Overview

While the smart and shear maglocks are extremely advanced the standard maglocks have not changed very much over the past 20 years. This consistency has allowed manufacturers to focus on such things as lowering power consumption while providing higher holding forces.

Standard Features

  • 1200lbs of Holding Force
  • Armature Plate and install hardware included
  • Silent Operation
  • Long Lasting Performance
  • Dual Voltage: 12/24VDC - Field Selectable
  • Compatible with any Access Control System

Technical Specifications

  • Magnet Size: 10.47 inches L x 2.87 inches H x 1.57 inches D
  • Armature Size: 7.25 inches L x 2.40 inches H x 0.69 inches D
  • Current Draw: 500mA @ 12VDC, 250mA @ 24VDC
  • Weight: 11 lbs

Finishes

  • Stainless Steel

**DISCONTINUED ITEM, See CM1200CD as a replacement**
Finish
Aluminum
Maglocks.com Rating
Good
Manufacturer
elocksolutions
Manufacturer Warranty
2 Year
Model Number
CM1200
Power Requirements
24VDC/12VDC
Status Monitor
Not Available
