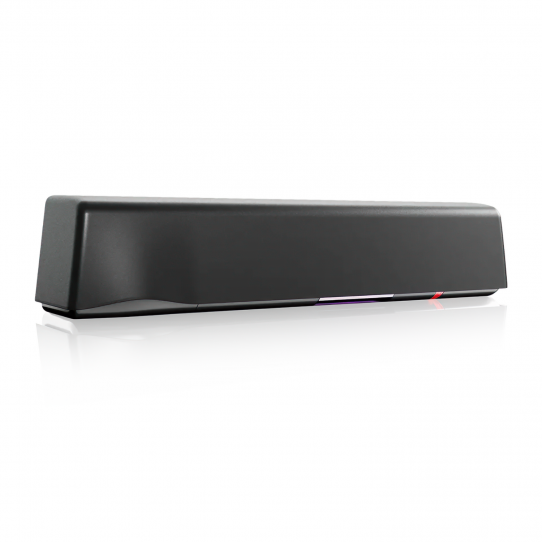

BEA, ULTIMO Automatic Sliding Door Sensor, Doppler Radar and Active Infrared

Description

Automatic Sliding Door Sensor with Extended / Enhanced Safety

BEA ULTIMO is a dual technology sensor with flexible safety features for automatic sliding doors. The microwave motion field activates as people or objects approach the door. Meanwhile, three adjustable infrared curtains, each with up to 32 spots of detection, ensure the safety of pedestrians passing through the door opening.

ULTIMO offers advanced presence detection using ULTI-SHIELD technology, which provides uniform sensitivity across the safety curtains. ULTI-SHIELD technology allows for extended or enhanced infrared curtain positioning, ensures no loss of detection and immunities to environmental disturbances.

The combination of flexible and precise detection fields complements the door's performance making ULTIMO ideal for high-traffic environments in hospitals, hotels, airports or retail facilities.

Technical Specifications

• Supply Voltage: 12V to 24V AC/DC
• Sensor Technology: Microwave Doppler Radar and Active Infrared (AIR) with Background Analysis
• Detection Mode: Motion and Presence
• Transmitter Freqency: 24.150 GHz
• Relay: SPDT
• Relay Output 1: 30 VDC, 1A, (0.5 -9 s) holdtime
• Mounting height: 6 feet 6 inches to 11 feet 6 inches
• Degree of Protection: IP54
• Temperature range: -13° F to +131° F
• Cable Length: 10 ft / 26 AWG

Models

• 10ULTIMO: Sensor for Automatic Sliging Doors, Dual Technology Sensor
