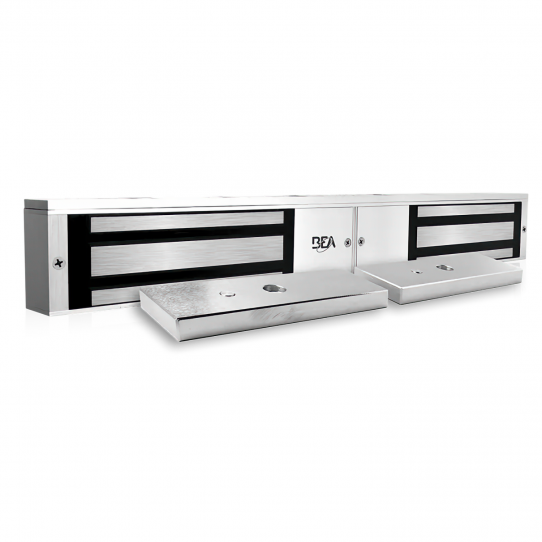

BEA, 10MAGLOCK6UL Double Magnetic Lock, 600lbs, UL294

Product Overview

BEA 600 LB MAGLOCKS provide a standards-compliant solution as part of an access control system for retail, healthcare, financial, education or storage facilities. The 600 lb holding force is ideal for mid- to high-level traffic in commercial buildings and can keep individuals safe from certain environments.

BEA electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.

The 600 LB MAGLOCKS can be used on hollow metal, wood, aluminum, glass and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the lock (bond) status sensor allow configuration of the settings as needed.

Features

• 600lbs holding force, UL294 (up to 500lbs static strength), each side
• 12/24 VDC input voltage
• LED status indicator
• Lock Status, SPDT
• Adjustable Relock Time Delay
• UL294 Listed*

* This product must be powered from a UL Listed, regulated, power-limited, power supply.

Model

• 10MAGLOCK6UL - Double Magnetic lock, 600lbs holding force with LED indicator, Relock Time Delay and Lock Status relay

Specification

• Input: 500/250 mA @ 12/24VDC (each side)

Dimensions

• 19.76 inches L x 1.65 inches H x 1.04 inches D

Specifications

• Model: 10MAGLOCK6UL UL294 Double Magnetic Lock
• Manufacturer: BEA
• Holding Force: 600 lbs per side (UL 294: up to 500 lbs static strength per side)
• Voltage: 12 VDC or 24 VDC
• Current Draw: 500 mA at 12 VDC; 250 mA at 24 VDC (each side)
• Dimensions: 19.76 inches L x 1.65 inches H x 1.04 inches D
• Relock Time Delay: Adjustable, 0 to 90 seconds
• Lock Status: SPDT relay output with LED status indicator
• Finish: Aluminum
• Use: Interior use
• Configuration: Double door
• Listing: UL 294 Listed (must be powered from a UL Listed, regulated, power-limited power supply)
