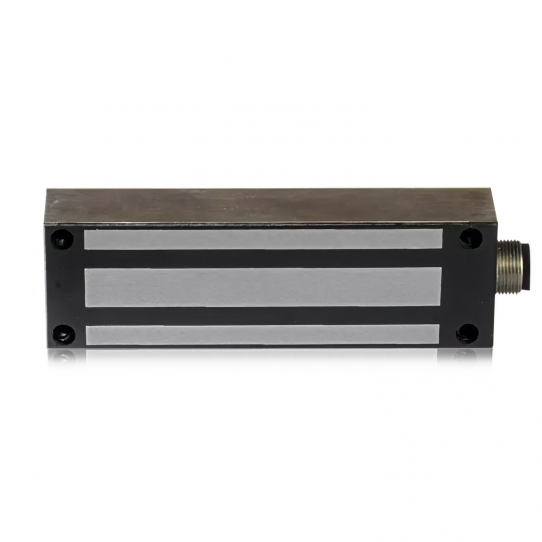

BEA 10GL1200R UL Listed Gatelock 1200lbs
Processing...

20% Off MSRP

BEA 10GL1200R UL Listed Gatelock 1200lbs

$378.62 $473.28

Overview

BEA UL Listed Gatelocks are designed to withstand the elements, featuring a stainless steel exterior and NEMA 4 enclosure to protect internal electronics.

Weather-resistant construction makes it ideal for industrial gate and exterior door applications.

More Info +


Options

Qty

Product Details

Product Overview

BEA UL Listed Gatelocks are designed to withstand the elements, featuring a stainless steel exterior and NEMA 4 enclosure to protect internal electronics. Its weather-resistant construction makes it ideal for industrial gate and exterior door applications. With a holding force of 1,200 lbs, the Gatelock is available in both a front mount model for sliding gates and a side mount model for swinging doors/gates. These locks include a built-in lock status sensor with a output relay.

Product Features

  • 1200lbs holding force
  • 3/4 inch male NPS threaded conduit fitting
  • Watherized
  • Built-in remote lock status sensor with an output relay

Model

  • 10GL1200R

Product Specifications

  • Current Draw: 500 mA @ 12vdc, 250 mA @ 24vdc
  • Material: Stainless Steel
  • Sensor: Lock status sensor with relay output
  • Cable Specifications: 24 AWG 7-conductor cable, 3.5ft

Product Dimensions

  • 8.75 inches (W) × 2.50 inches (H) × 1.625 inches (D)
Also Known As
BEA10010GL1200R, BEA-10GL1200R
Finish
Stainless Steel
Manufacturer
BEA
Model Number
10GL1200R
Power Requirements
24VDC/12VDC
Status Monitor
Standard
UPC Code
818273377121
Usage
Weather Resistant
1 Question asked on BEA 10GL1200R UL Listed Gatelock 1200lbs



Q Joe • 03/05/2021, 7:37:35 PM Can this lock be used by a regular key rather than a key pad or a swipe pad? We are wanting to key our gate to our meeting room door because we have many tenants that we rent to.
A 03/08/2021, 12:21:42 PM Yes, it would be possible to use an Electronic Keyswitch assembly that is triggered by a mechanical mortise key cylinder to control this lock. To get started on a complete system quote that would include all the required parts for this project please give us a call at 1-866-500-5625
