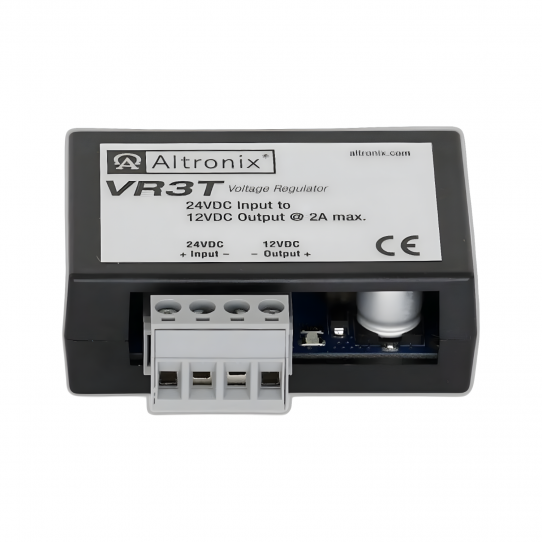

Altronix, VR3T Voltage Converter 24VDC input/12VDC output

Product Overview

The Altronix VR3T is a voltage regulator that converts a 24VDC input into a regulated 12VDC output. It provides power for 12VDC CCTV cameras and accessories, fiber optic transmitters, REX PIR, Prox Readers, etc. A built-in LED indicates regulator power status. This overload-protected regulator includes a built-in LED to indicate regulator power status.

Screw terminal blocks facilitate ease of wiring. Compact design allows for integration in a wide range of camera housings.

Features and Specifications

• 24VDC input, 12VDC output
• 2A continuous supply current (max)
• Built-in overload protection
• Filtered and regulated

Dimensions

• Enclosure Dimensions (approximate): 2.38 inches W x 1 inch H x 1.62 inches D (60 mm W x 25 mm H x 41 mm D)
• Product Weight: 0.13 lbs

Specifications

• Model: VR3T
• Also known as: AX-VR3T, ALT-VR3T, ALTRONIX-VR3T
• Manufacturer: Altronix
• Type: Voltage regulator/converter
• Input: 24 VDC
• Output: 12 VDC regulated, 2 A continuous (max)
• Protection: Overload protected
• Indicator: LED for regulator power status
• Connections: Screw terminal blocks
• Dimensions: 2.38 inches W x 1 inch H x 1.62 inches D (60 mm x 25 mm x 41 mm) (approximate)
• Weight: 0.13 lb
• Finish: Black
• Usage: Interior use
• UPC: 782239945047
• Warranty: Lifetime
