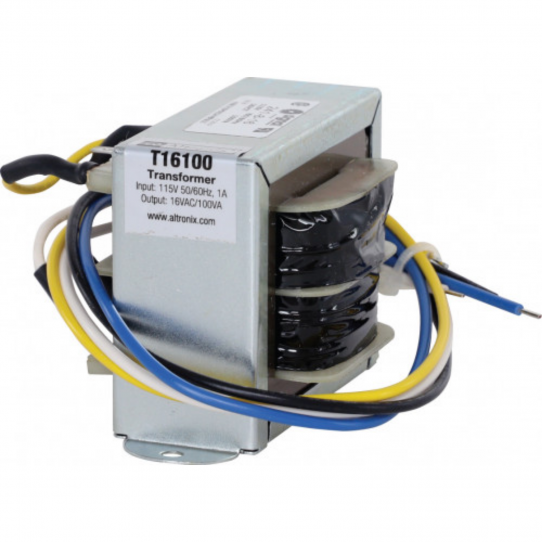

Altronix, T16100 Open Frame Transformer, 115VAC input 16VAC Supply Current

Product Overview

Altronix T16100 open frame transformer provides power for electronic power supplies and equipment including security, access control, and surveillance devices.

Features and Specifications

Input: 115VAC 50/60 Hz, 1 Amp

Output: 16VAC (100VA), 6.25 Amp

Electrical:

• Operating temperature: 0° C to 49° C (32° F to 120° F)
• BTU/HR: 51 BTU/Hr. (approx)
• System AC input VA requirement: 115VA

Dimensions

• Dimensions (approximate): 2.6 inches W x 4 inches L x 2.5 inches H (66mm W x 102mm L x 64mm H)
• Product Weight: 2.3 lbs

WARNING: This installation should be made by qualified service personnel and should conform to the National Electrical Code and all local codes.

Specifications

• Input: 115 VAC, 50/60 Hz, 1 A
• Output: 16 VAC (100 VA), 6.25 A
• System AC Input VA Requirement: 115 VA
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Heat Output (approximate): 51 BTU/hr
• Dimensions (approximate): 2.6 in W x 4 in L x 2.5 in H (66 x 102 x 64 mm)
• Weight: 2.3 lbs
• Use: Interior
